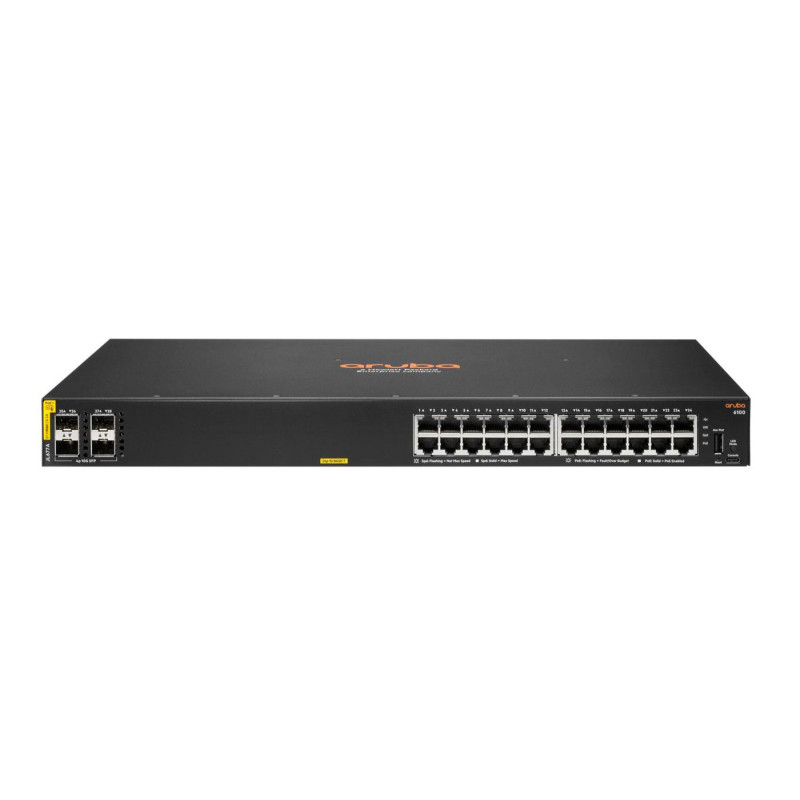

Hewlett Packard Enterprise Aruba 6100 24G CL4 PoE 4SFP+ - Ref. JL677A#ABB
1.829,81 €
Impuestos incluidos
En stock · envío en 24-72h
Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch
Pago 100% seguro
Tarjeta (RedSys) y transferencia bancaria
Envío en 24/72 h
Gratis a partir de 299 €
Devoluciones en 14 días
Devolución fácil y sin complicaciones
The Aruba CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the Aruba CX 6100 switches provide a
convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications.
Prepare your network for tomorrow’s unpredictable demands with a powerful Aruba ASIC architecture and programmable AOS-CX operating system used across the Aruba CX portfolio to deliver a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 370W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12 port model is ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the Aruba CX 6100 also simplifies ownership with no switch software licensing requirements.
Features
Entry Level Aruba CX Access Layer Switches
- The Aruba CX 6100 Switch Series offers gigabit connectivity with high speed uplinks and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks.
- Using Aruba AOS-CX operating system across Aruba CX switching platforms and deployment domains provides a simpler, more consistent operator experience.
- Fully-managed enterprise class switches deliver Layer 2 capabilities with support static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6 support.
- Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 370W of Class 4 PoE.
- Simplifies ownership with no switch software licensing or subscriptions required.
Performance and Power
- The Aruba CX 6100 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption.
- Deploy wireless access points and IoT devices with Aruba CX 6100 switch models that support up to 370W IEEE 802.3at Class 4 Power over Ethernet for up to 30W per port.
- Four built-in wire speed 1/10GbE uplinks eliminate bottlenecks at the access layer where users and devices connect.
Simplified Configuration and Management
- The Aruba CX 6100 Switch Series provides flexibility to manage and simplify configurations with Aruba NetEdit, easy to use Web GUI, or industry standard CLI.
- Aruba NetEdit introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
- Software-defined ready with REST APIs for fine-grained programmability of network tasks.
- Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).
convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications.
Prepare your network for tomorrow’s unpredictable demands with a powerful Aruba ASIC architecture and programmable AOS-CX operating system used across the Aruba CX portfolio to deliver a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 370W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12 port model is ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the Aruba CX 6100 also simplifies ownership with no switch software licensing requirements.
Features
Entry Level Aruba CX Access Layer Switches
- The Aruba CX 6100 Switch Series offers gigabit connectivity with high speed uplinks and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks.
- Using Aruba AOS-CX operating system across Aruba CX switching platforms and deployment domains provides a simpler, more consistent operator experience.
- Fully-managed enterprise class switches deliver Layer 2 capabilities with support static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6 support.
- Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 370W of Class 4 PoE.
- Simplifies ownership with no switch software licensing or subscriptions required.
Performance and Power
- The Aruba CX 6100 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption.
- Deploy wireless access points and IoT devices with Aruba CX 6100 switch models that support up to 370W IEEE 802.3at Class 4 Power over Ethernet for up to 30W per port.
- Four built-in wire speed 1/10GbE uplinks eliminate bottlenecks at the access layer where users and devices connect.
Simplified Configuration and Management
- The Aruba CX 6100 Switch Series provides flexibility to manage and simplify configurations with Aruba NetEdit, easy to use Web GUI, or industry standard CLI.
- Aruba NetEdit introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
- Software-defined ready with REST APIs for fine-grained programmability of network tasks.
- Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).
| Capacidad | 95,2 Mpps |
| Capacidad de conmutación | 128 Gbit/s |
| Compatibilidad Jumbo frames | Yes |
| Latencia (1 Gbps) | 1,5 µs |
| Latencia (10 Gbps) | 1,8 µs |
| Memoria de búfer de paquetes | 12,38 MB |
| Tabla de direcciones MAC | 8192 entradas |
| Apilable | Yes |
| Color producto | Black |
| Dirección del flujo de aire | Side-to-side airflow |
| Factor forma | 1U |
| Montaje en rack | Yes |
| Capa switch | L3 |
| Soporte de calidad de servicio (QoS) | Yes |
| Tipo de switch | Managed |
| Soporte multicast | Yes |
| Agregación de enlaces | Yes |
| Estándares de red | IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3x |
| Protocolo de árbol de expansión | Yes |
| Puertos en espejo | Yes |
| Soporte 10G | Yes |
| Soporte de control de flujo | Yes |
| Soporte VLAN | Yes |
| Humedad relativa de almacenamiento (H-H) | 15 - 90 % |
| Humedad relativa de funcionamiento (H-H) | 15 - 95 % |
| Temperatura de almacenamiento (T-T) | -40 - 70 °C |
| Temperatura de funcionamiento (T-T) | 0 - 45 °C |
| Apilamiento virtual (unidades) | 16 |
| Frecuencia procesador | 1016 MHz |
| Memoria flash | 16 MB |
| Memoria interna | 4096 MB |
| Modelo procesador | ARM Cortex-A9 |
| Procesador integrado | Yes |
| Tipo de memoria | DDR3-SDRAM |
| Cantidad de módulos SFP instalados | 0 |
| Cantidad de módulos SFP+ instalados | 0 |
| Cantidad de ranuras para módulos SFP+ | 4 |
| Puerto consola | USB |
| Puertos Ethernet RJ-45 de conmutación básica | 24 |
| Tipo de puertos Ethernet RJ-45 de conmutación básica | Gigabit Ethernet (10/100/1000) |
| Consumo de energía (máx.) | 32,7 W |
| Frecuencia de entrada AC | 50 - 60 Hz |
| Fuente de alimentación | AC |
| Fuente de alimentación incluida | Yes |
| Voltaje de entrada AC | 100 - 240 V |
| Alimentación PoE | Yes |
| Presupuesto total alimentación PoE | 370 W |
| Autenticación | MAC-based authentication |
| Características DHCP | DHCP client |
| IGMP snooping | Yes |
| Lista de control de acceso (ACL) | Yes |
| Tipo de autenticación | RADIUS/TACACS+ |
| Garantía | 1 año |
MP-909561
7 Artículos
Ficha técnica
- Estándares de red
- IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3x
- Soporte 10G
- Yes
- Soporte de control de flujo
- Yes
- Tabla de direcciones MAC
- 8192 entradas
- Capacidad de conmutación
- 128 Gbit/s
- Montaje en rack
- Yes
- Apilable
- Yes
- Capacidad
- 95,2 Mpps
- Memoria interna
- 4096 MB
- Soporte VLAN
- Yes
- Memoria Flash
- 16 MB
- Protocolo de árbol de expansión
- Yes
- Tipo de memoria
- DDR3-SDRAM
- Latencia (1 Gbps)
- 1,5 µs
- PoE
- PoE
- Color producto
- Black
- Humedad relativa de almacenamiento (H-H)
- 15 - 90 %
- Humedad relativa de funcionamiento (H-H)
- 15 - 95 %
- Temperatura de almacenamiento (T-T)
- -40 - 70 °C
- Temperatura de funcionamiento (T-T)
- 0 - 45 °C
- Factor forma
- 1U
- Soporte de calidad de servicio (QoS)
- Yes
- Soporte multicast
- Yes
- Modelo procesador
- ARM Cortex-A9
- Compatibilidad Jumbo frames
- Yes
- Latencia (10 Gbps)
- 1,8 µs
- Capa switch
- L3
- Tipo de switch
- Managed
- Agregación de enlaces
- Yes
- Puertos en espejo
- Yes
- Frecuencia procesador
- 1016 MHz
- Procesador integrado
- Yes
- Cantidad de módulos SFP instalados
- 0
- Memoria de búfer de paquetes
- 12,38 MB
- Puertos Ethernet RJ-45 de conmutación básica
- 24
- Tipo de puertos Ethernet RJ-45 de conmutación básica
- Gigabit Ethernet (10/100/1000)
- Dirección del flujo de aire
- Side-to-side airflow
- Cantidad de módulos SFP+ instalados
- 0
- Cantidad de ranuras para módulos SFP+
- 4
- Apilamiento virtual (unidades)
- 16
- Puerto consola
- USB
Referencias específicas
- ean13
- 5715063181669
- MPN
- JL677A#ABB
