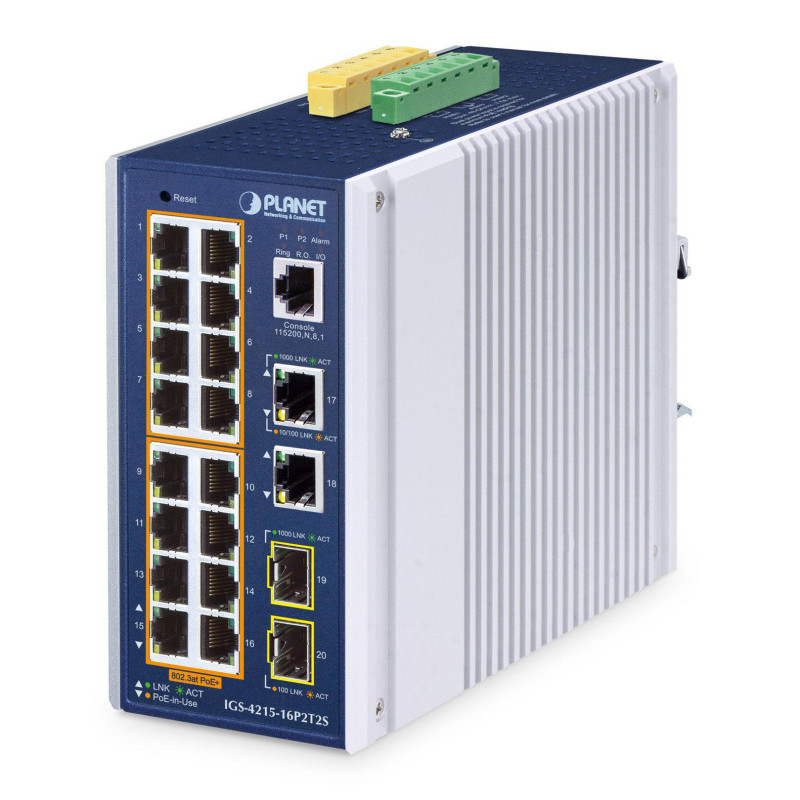

Planet IP30 Industrial L2/L4 16-Port - Ref. IGS-4215-16P2T2S
638,73 €
527,87 € sin IVA
Impuestos incluidos
IP30 Industrial L2/L4 16-Port. Producto Planet.
Pago 100% seguro
Tarjeta (RedSys) y transferencia bancaria
Envíos y plazos
Envío 12,04 € (IVA inc.) · GRATIS a partir de 299 €
Devoluciones en 14 días
Devolución fácil y sin complicaciones
Factura de empresa
IVA desglosado y factura oficial en cada compra
Cost-optimized Full PoE+ Power Solution Ideal for Hardened Environment
Designed to be installed in heavy industrial demanding environments, the IGS-4215-16P2T2S is the new member of PLANET Industrial-grade, DIN-rail type L2/L4 Managed Gigabit PoE+ Switch family featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 16 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+, 2 additional Gigabit copper ports and another 2 extra 100/1000BASE-X SFP fiber slots for data and video uplink. The IGS-4215-16P2T2S is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with a total power budget of up to 320 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing.
Cybersecurity Network Solution to Minimize Security Risks
The IGS-4215-16P2T2S supports SSHv2 and TLSv1.2 protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, dynamic ARP Inspection Protection, 802.1x port-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.
Redundant Ring, Fast Recovery for Critical Network Applications
The IGS-4215-16P2T2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.
Built-in Unique PoE Functions for Powered Devices Management
As the industrial PoE+ managed switch for surveillance, wireless and VoIP networks, the IGS-4215-16P2T2S features special PoE management functions:
- PD alive check
- Scheduled power recycling
- PoE schedule
- PoE usage monitoring
- PoE extension
Intelligent Powered Device Alive Check
The IGS-4215-16P2T2S can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the IGS-4215-16P2T2S will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing the administrator’s management burden.
Scheduled Power Recycling
The IGS-4215-16P2T2S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.
PoE Schedule for Energy Savings
Under the global trend of energy saving and contributing to environmental protection, the IGS-4215-16P2T2S can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals, which is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours.
802.3at PoE+ Power and Ethernet Data Transmission Distance Extension
In the “Extend” operation mode, the IGS-4215-16P2T2S operates on a per-port basis at 10Mbps duplex operation but can support 20-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the IGS-4215-16P2T2S provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.
Effective Alarm Alert for Better Protection
The IGS-4215-16P2T2S supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource.
Digital Input and Digital Output for External Alarm
The IGS-4215-16P2T2S supports Digital Input and Digital Output on its front panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-4215-16P2T2S port shows link down, link up or power failure.
Environmentally Hardened Design
Designed to be installed in heavy industrial demanding environments, the IGS-4215-16P2T2S is the new member of PLANET Industrial-grade, DIN-rail type L2/L4 Managed Gigabit PoE+ Switch family featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit switching engine along with 16 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+, 2 additional Gigabit copper ports and another 2 extra 100/1000BASE-X SFP fiber slots for data and video uplink. The IGS-4215-16P2T2S is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with a total power budget of up to 320 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing.
Cybersecurity Network Solution to Minimize Security Risks
The IGS-4215-16P2T2S supports SSHv2 and TLSv1.2 protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, dynamic ARP Inspection Protection, 802.1x port-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.
Redundant Ring, Fast Recovery for Critical Network Applications
The IGS-4215-16P2T2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.
Built-in Unique PoE Functions for Powered Devices Management
As the industrial PoE+ managed switch for surveillance, wireless and VoIP networks, the IGS-4215-16P2T2S features special PoE management functions:
- PD alive check
- Scheduled power recycling
- PoE schedule
- PoE usage monitoring
- PoE extension
Intelligent Powered Device Alive Check
The IGS-4215-16P2T2S can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the IGS-4215-16P2T2S will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing the administrator’s management burden.
Scheduled Power Recycling
The IGS-4215-16P2T2S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.
PoE Schedule for Energy Savings
Under the global trend of energy saving and contributing to environmental protection, the IGS-4215-16P2T2S can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals, which is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours.
802.3at PoE+ Power and Ethernet Data Transmission Distance Extension
In the “Extend” operation mode, the IGS-4215-16P2T2S operates on a per-port basis at 10Mbps duplex operation but can support 20-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the IGS-4215-16P2T2S provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.
Effective Alarm Alert for Better Protection
The IGS-4215-16P2T2S supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource.
Digital Input and Digital Output for External Alarm
The IGS-4215-16P2T2S supports Digital Input and Digital Output on its front panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-4215-16P2T2S port shows link down, link up or power failure.
Environmentally Hardened Design
| Almacenar y reenviar | Yes |
| Capacidad | 29,7 Mpps |
| Capacidad de conmutación | 40 Gbit/s |
| Compatibilidad Jumbo frames | Yes |
| Marcos Jumbo | 10000 |
| Tabla de direcciones MAC | 8000 entradas |
| Botón Reset | Yes |
| Certificación | FCC Part 15 Class A, CE/IEC 60068-2-27 (shock)/IEC 60068-2-32 (free fall)/IEC 60068-2-6 (vibration) |
| Código de protección (IP) | IP30 |
| Color producto | Aluminium/Blue |
| Indicadores LED | Yes |
| Material de la carcasa | Aluminium |
| Montaje a pared | Yes |
| Montaje en carril DIN | Yes |
| Capa switch | L2/L4 |
| Clasificación del tráfico | Yes |
| Gestión basada en web | Yes |
| Gestionado en la nube | Yes |
| Inspección ARP | Yes |
| Registro de eventos del sistema | Yes |
| Soporte de calidad de servicio (QoS) | Yes |
| Tipo de switch | Managed |
| Agregación de enlaces | Yes |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Protocolo de árbol de expansión | Yes |
| Semidúplex | Yes |
| Soporte VLAN | Yes |
| Humedad relativa de almacenamiento (H-H) | 5 - 95 % |
| Humedad relativa de funcionamiento (H-H) | 5 - 95 % |
| Temperatura de almacenamiento (T-T) | -40 - 85 °C |
| Temperatura de funcionamiento (T-T) | -40 - 75 °C |
| Cantidad de módulos SFP instalados | 2 |
| Puertos Ethernet RJ-45 de conmutación básica | 18 |
| Tipo de puertos Ethernet RJ-45 de conmutación básica | Gigabit Ethernet (10/100/1000) |
| Fuente de alimentación | DC/PoE |
| Alimentación PoE | Yes |
| Compatibilidad SSH/SSL | Yes |
| IGMP snooping | Yes |
| Lista de control de acceso (ACL) | Yes |
| Garantía | 5 años |
Características principales
- Puertos: 16 puertos
- Tipo de puertos: Gigabit Ethernet (10/100/1000)
- Gestión: Managed
- Capa: L2/L4
- Presupuesto PoE: Sí
- Capacidad de conmutación: 40 Gbit/s
- Tabla MAC: 8000 entradas
MP-1229132
24 unidades
Ficha técnica
- Tabla de direcciones MAC
- 8000 entradas
- Capacidad de conmutación
- 40 Gbit/s
- Indicadores LED
- Yes
- Certificación
- FCC Part 15 Class A, CE/IEC 60068-2-27 (shock)/IEC 60068-2-32 (free fall)/IEC 60068-2-6 (vibration)
- Capacidad
- 29,7 Mpps
- Material de la carcasa
- Aluminium
- Fuente de alimentación
- DC/PoE
- Soporte VLAN
- Yes
- Lista de Control de Acceso (ACL)
- Yes
- Clasificación del tráfico
- Yes
- Inspección ARP
- Yes
- Protocolo de árbol de expansión
- Yes
- Montaje en carril DIN
- Yes
- Número de puertos
- 16
- Color producto
- Aluminium/Blue
- Humedad relativa de almacenamiento (H-H)
- 5 - 95 %
- Humedad relativa de funcionamiento (H-H)
- 5 - 95 %
- Temperatura de almacenamiento (T-T)
- -40 - 85 °C
- Temperatura de funcionamiento (T-T)
- -40 - 75 °C
- Full duplex
- Yes
- Alimentación PoE
- Yes
- Gestión basada en web
- Yes
- Soporte de calidad de servicio (QoS)
- Yes
- Montaje a pared
- Yes
- Compatibilidad Jumbo frames
- Yes
- Capa switch
- L2/L4
- Tipo de switch
- Managed
- Agregación de enlaces
- Yes
- Auto MDI/MDI-X
- Yes
- Cantidad de módulos SFP instalados
- 2
- Puertos Ethernet RJ-45 de conmutación básica
- 18
- Tipo de puertos Ethernet RJ-45 de conmutación básica
- Gigabit Ethernet (10/100/1000)
- Registro de eventos del sistema
- Yes
- Código de protección (IP)
- IP30
- Botón Reset
- Yes
- Marcos Jumbo
- 10000
- Almacenar y reenviar
- Yes
- Gestionado en la nube
- Yes
- Semidúplex
- Yes
- IGMP snooping
- Yes
- Compatibilidad SSH/SSL
- Yes
Referencias específicas
- ean13
- 4711605287395
- MPN
- IGS-4215-16P2T2S
