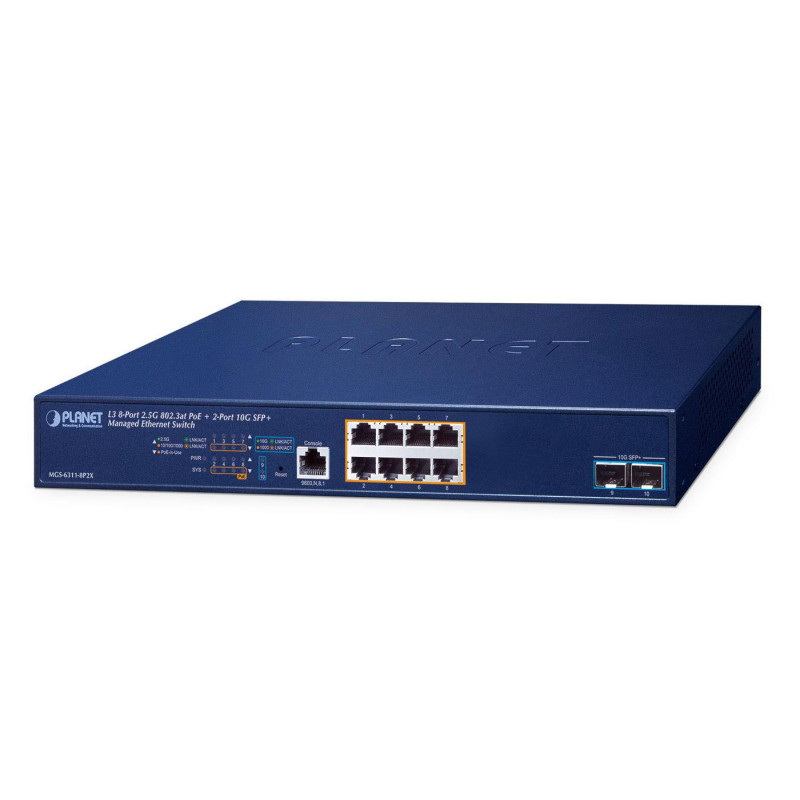

Layer 3, 8-Port 2.5GBASE-T - Ref. MGS-6311-8P2X

Perfect Managed Multigigabit Ethernet Switch with L3/L2 Switching and Security

PLANET MGS-6311-8P2X is a brand-new Layer 3 managed multigigabit switch providing 2.5Gbps data over UTP cables, designed for the demand of high-bandwidth required network equipment, such as Wi-Fi 6 802.11ax wireless AP, NAS, workstation and those with 2.5GBASE-T interfaces. It features 8 10/100/1000/2500BASE-T copper ports supporting 802.3at PoE+ injector function, a total PoE power budget of up to 150 watts and 2 extra 1G/10GBASE-X SFP+ fiber ports that are flexibly designed to extend the connection distance.

The MGS-6311-8P2X provides high-density performance, Layer 3 static routing, RIP (Routing Information Protocol) and OSPF (Open Shortest Path First). With 10Gbps interfaces, it can handle extremely large amounts of data in a secure topology linking to an enterprise backbone or high-capacity servers. The powerful network security features make the MGS-6311-8P2X perform effective data traffic control for ISP and enterprise VoIP, video streaming, and multicast applications.


2.5Gbps Capability for Diversified Bandwidth Applications

With the terminal access rates of 802.11ac/ax wireless APs reaching as high as 1.2Gbps to 3.6Gbps, Gigabit ports have been unable to satisfy the demand. Supporting 2.5Gbps capability and 802.3af/at PoE output, the MGS-6311-8P2X can deliver not only data to 802.11ac/ax wireless APs, but also power with the existing CAT5e Ethernet cables to other powered devices such as APs and IP cameras. It can definitely give you the speed you demand and its Plug and Play makes installation easy

The fiber-optic 10GBASE-X SFP+ interfaces of the MGS-6311-8P2X support dual speeds, 10GBASE-SR/LR and 1000BASE-SX/LX , meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.


Redundant Ring, Fast Recovery for Critical Network Applications

The MGS-6311-8P2X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple Ring network, the recovery time could be less than 15ms to quickly bring the network back to normal operation.


Layer 3 Routing Support

The MGS-6311-8P2X enables the administrator to conveniently boost network efficiency by configuring Layer 3 static routing manually, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically.

- The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination.
- The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.


Strong Multicast

The MGS-6311-8P2X supports abundant multicast features. In Layer 2, it features IPv4 IGMPv1/v2/v3 snooping and IPv6 MLD v1/v2 snooping. With Multicast VLAN Register (MVR), multicast receiver/sender control and illegal multicast source detect functions which make the MGS-6311-8P2X great for any robust networking.


Full IPv6 Support

The MGS-6311-8P2X provides IPv6 management and enterprise-level secure features such as SSH, ACL, WRR and RADIUS authentication. It thus helps the enterprises to step in the IPv6 era with the lowest investment. In addition, you don’t need to replace the network facilities when the IPv6 FTTx edge network is built.


Robust Layer 2 Features

The MGS-6311-8P2X can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Multiple Spanning Tree Protocol, bandwidth control and IGMP snooping. This switch provides 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol functions. By supporting port aggregation, the MGS-6311-8P2X allows the operation of a high-speed trunk combined with multiple ports. It enables up to 64 groups for trunking with a maximum of 8 ports for each group.


Excellent Layer 2 to Layer 4 Traffic Control

The MGS-6311-8P2X is loaded with powerful traffic management and WRR features to enhance services offered by telecoms. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications. It also empowers the enterprises to take full advantage of the limited network resources and guarantees the best in VoIP and video conferencing transmission.


Powerful Network Security

Almacenar y reenviar	Yes
Capacidad	59,52 Mpps
Capacidad de conmutación	80 Gbit/s
Compatibilidad Jumbo frames	Yes
Tabla de direcciones MAC	16000 entradas
Certificación	FCC Part 15 Class A, CE
Color producto	Blue
Factor forma	1U
Indicadores LED	Yes
Montaje en rack	Yes
Número de ventiladores	1 Ventilador(es)
Capa switch	L3
Clasificación del tráfico	Yes
Configuración de ajustes de ubicación (CLI)	Yes
Gestión basada en web	Yes
Registro de eventos del sistema	Yes
Soporte de calidad de servicio (QoS)	Yes
Tipo de switch	Managed
Agregación de enlaces	Yes
Compatible con aprendizaje automático de dirección MAC	Yes
Compatible con envejecimiento automático de dirección MAC	Yes
Full duplex	Yes
Negociación automática	Yes
Protocolo de árbol de expansión	Yes
Semidúplex	Yes
Soporte 10G	Yes
Soporte de control de flujo	Yes
Soporte VLAN	Yes
Humedad relativa de almacenamiento (H-H)	5 - 90 %
Humedad relativa de funcionamiento (H-H)	5 - 90 %
Temperatura de almacenamiento (T-T)	-10 - 70 °C
Temperatura de funcionamiento (T-T)	0 - 50 °C
Cantidad de módulos SFP+ instalados	2
Conector de fibra óptica	SFP+
Puertos Ethernet RJ-45 de conmutación básica	8
Tipo de puertos Ethernet RJ-45 de conmutación básica	2.5G Ethernet (100/1000/2500)
Frecuencia de entrada AC	50/60 Hz
Fuente de alimentación	AC
Voltaje de entrada AC	100 - 240 V
Alimentación PoE	Yes
Presupuesto total alimentación PoE	150 W
Puertos PoE+	8
Garantía	1 año

Características principales

• Puertos: 8 puertos
• Tipo de puertos: 2.5G Ethernet (100/1000/2500)
• Gestión: Managed
• Capa: L3
• Presupuesto PoE: Sí
• Capacidad de conmutación: 80 Gbit/s
• Tabla MAC: 16000 entradas
• Montaje: 1U
