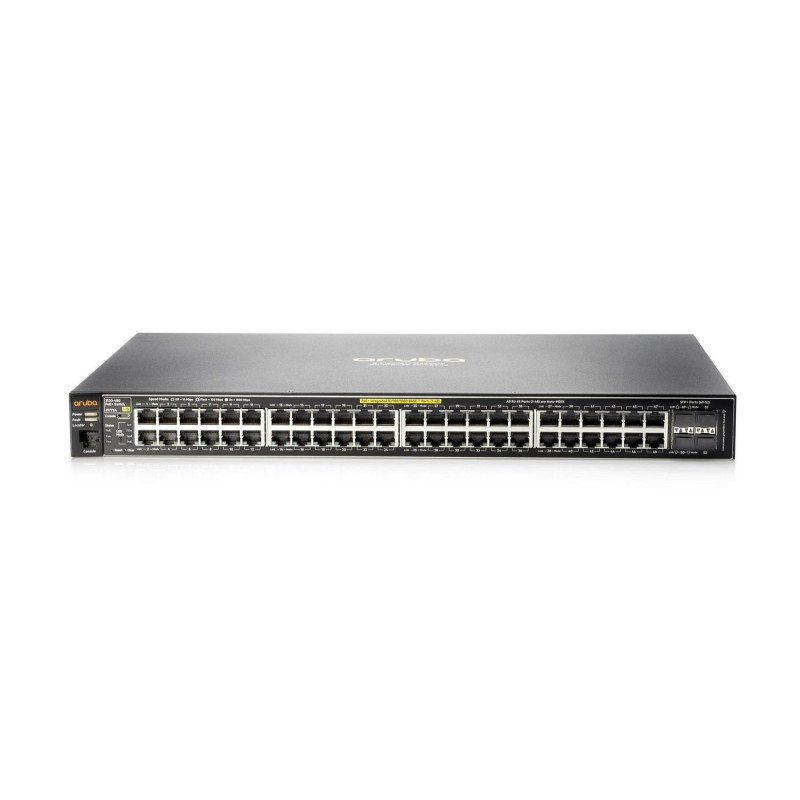

2530-48G-PoE+ Switch

The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver Layer 2 capabilities with optional PoE+, optional 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and power savings with Energy Efficient Ethernet.

The Aruba 2530 Switch Series is easy to use and deploy, and delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management.

Features

Cost-Effective, Reliable and Secure Access Layer Switches
- The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments.
- Fully managed switches deliver full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, and IPv6 host support.
- Right size deployment with choice of 8-, 24-, and 48-port models available with Gigabit or Fast Ethernet ports, optional PoE+, and optional 10GbE uplinks.
- Power savings with fanless models, Energy Efficient Ethernet (IEEE 802.3az), and ability to disable LEDs and enable port low power mode.
- Delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.

Security and Quality of Service (QoS)
- The Aruba 2530 Switch Series supports flexible authentication methods including Local MAC, 802.1X, and MAC and Web for greater policy-driven application security.
- Advanced denial of service (DOS) protection, such as DHCP Protection, Dynamic ARP protection, and Dynamic IP lockdown, enhance security. Flexible traffic controls include ACLs and QoS.
- Traffic prioritization with IEEE 802.1p allows real-time traffic classification with support for eight priority levels mapped to either two or four queues using weighted deficit round robin (WDRR) or strict priority (SP).
- Defend your IPv6 network with DHCPv6 Protection.

Simple Deployment and Management
- The Aruba 2530 Switch Series supports a choice of management interfaces with Web GUI, command-line interface (CLI), and SNMP with either console or micro USB ports.
- Quiet operation with fanless and variable speed fan models.
- Flexible deployment with wall, table, and rack mounting options.
- TR-069 delivers zero touch deployment for devices with dynamic IP addresses and on private networks.

Single View of the Network
- The Aruba 2530 Switch Series supports ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
- Supports Airwave Network Management software to provide common platform for Zero-Touch Provisioning management, and monitoring for wired and wireless network devices.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.

Capacidad	77,3 Mpps
Capacidad de conmutación	104 Gbit/s
Compatibilidad Jumbo frames	Yes
Latencia (1 Gbps)	2,3 µs
Latencia (10-100 Mbps)	7,4 µs
Memoria de búfer de paquetes	3 MB
Tabla de direcciones MAC	16000 entradas
Apilable	Yes
Color producto	Black
Factor forma	1U
Montaje en rack	Yes
Capa switch	L2
Gestión basada en web	Yes
Soporte de calidad de servicio (QoS)	Yes
Soporte MIB	Y
Tipo de switch	Managed
Soporte multicast	Yes
Agregación de enlaces	Yes
Auto MDI/MDI-X	Yes
Detección automática	Yes
Estándares de red	IEEE 802.3/IEEE 802.3ab/IEEE 802.3at/IEEE 802.3u
Full duplex	Yes
Limitación de velocidad	Yes
Número de VLANs	512
Protocolo de árbol de expansión	Yes
Puertos en espejo	Yes
Soporte 10G	No
Soporte de control de flujo	Yes
Soporte VLAN	Yes
Tecnología de cableado Ethernet de cobre	1000BASE-T/100BASE-TX/10BASE-T
Disipación de calor	236 BTU/h
Humedad relativa de almacenamiento (H-H)	15 - 90 %
Humedad relativa de funcionamiento (H-H)	15 - 95 %
Temperatura de almacenamiento (T-T)	-40 - 70 °C
Temperatura de funcionamiento (T-T)	0 - 45 °C
Apilamiento virtual (unidades)	16
Frecuencia procesador	800 MHz
Memoria flash	128 MB
Memoria interna	256 MB
Procesador integrado	Yes
Tipo de memoria	DDR3-SDRAM
Cantidad de módulos SFP instalados	0
Cantidad de módulos SFP+ instalados	0
Cantidad de ranuras para módulos SFP	4
Puertos Ethernet RJ-45 de conmutación básica	48
Tipo de puertos Ethernet RJ-45 de conmutación básica	Gigabit Ethernet (10/100/1000)
Consumo de energía (típico)	476 W
Frecuencia de entrada AC	50 - 60 Hz
Fuente de alimentación incluida	Yes
Voltaje de entrada AC	100 - 240 V
Alimentación PoE	Yes
Presupuesto total alimentación PoE	382 W
Características DHCP	DHCP server
Compatibilidad SSH/SSL	Yes
Lista de control de acceso (ACL)	Yes
Garantía	1 año
