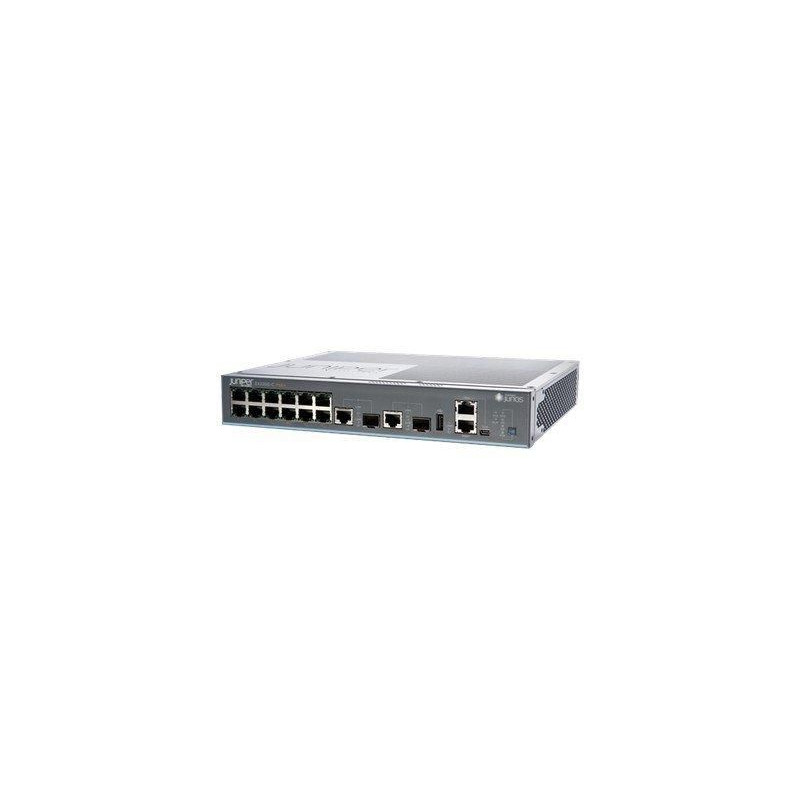

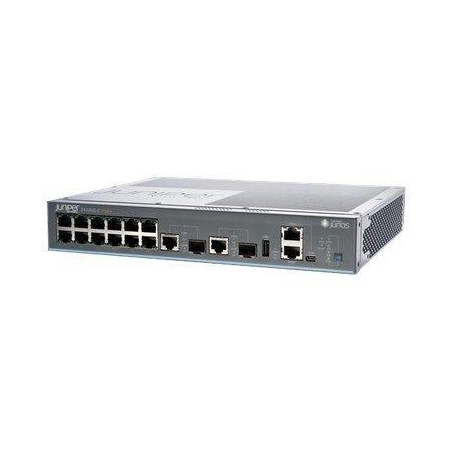

EX 2200 compact - switch -

The EX2200 line of Ethernet switches delivers an economical standalone solution designed to meet the needs of today's businesses.

Two EX2200 Ethernet switch options are available.

The EX2200 Ethernet switch is a single rack-unit solution for crowded wiring closets and access locations where space and power are at a premium. Featuring both 24 and 48 10/100/1000BASE-T port models, the EX2200's 10-inch depth, low power consumption, and low-acoustic fans make it an environmentally friendly Ethernet solution that is ideal for open office deployments. The EX2200 Ethernet switches also include four fixed front panel Gigabit Ethernet (GbE) uplink ports to support high-speed backbone or link aggregation connections between wiring closets or upstream aggregation switches without sacrificing base ports, offering true 24+4 and 48+4 configuration options.

The EX2200-C Ethernet switch is a highly compact, silent and power-efficient platform for low-density micro branch deployments and commercial access or enterprise workgroup environments outside the wiring closet. Featuring 12 10/100/1000BASE-T access ports in a fanless design, the EX2200-C Ethernet switches deliver a powerful solution designed specifically for office, classroom, hospitality, and other space- and wiring-constrained environments. Two front panel dual-purpose (10/100/1000BASE-T or 100/1000BASE-X) uplinks provide operational flexibility.

The EX2200 and EX2200-C Ethernet switches are available with or without standards-based 802.3af Class 3 Power over Ethernet (PoE) for supporting networked devices such as telephones, video cameras, and wireless LAN (WLAN) access points. The Ethernet switches also support the 802.3at PoE+ standard, offering additional power for devices such as multiple radio IEEE 802.11n wireless access points.

The EX2200 and EX2200-C Ethernet switches also run the same Junos operating system that powers other Juniper switches, routers and security devices, providing a consistent set of features and capabilities across the Juniper network infrastructure.

Capacidad	21 Mpps
Compatibilidad Jumbo frames	Yes
Máxima velocidad de transferencia de datos	28 Gbit/s
Tabla de direcciones MAC	16000 entradas
Apilable	No
Color producto	Grey
Factor forma	1U
Indicadores LED	Link/Power
Montaje en rack	Yes
Capa switch	L2
Soporte de calidad de servicio (QoS)	Yes
Tipo de switch	Managed
Enrutamiento IP	Yes
Full duplex	Yes
Número de VLANs	1024
Soporte 10G	No
Soporte VLAN	Yes
Velocidades datos Ethernet LAN	10/100/1000 Mbit/s
Características de red	PoE
Conexiones de entrada	100BASE-FX / 1000BASE-X (SFP)
Dimensiones (AnxPxAl)	269.2 x 238 x 44 mm
Ethernet LAN	Yes
LED de encendido	Yes
LEDs de conectividad	14
Material	SECC
Tecnología de cableado	10/100/1000BASE-T
Tecnología de conectividad	Wired
Velocidad de transferencia de datos	1 Gbit/s
Sistemas operativos compatibles	Junos OS
Puertos Ethernet RJ-45 de conmutación básica	14
Compatibilidad con fuentes de alimentación redundantes (RPS)	No
Consumo de energía (típico)	180 W
Frecuencia de entrada AC	50 Hz
Número de fuentes de alimentación	1
Potencia de salida	100 W
Voltaje de entrada AC	230 V
Alimentación PoE	Yes
Filtrado de direcciones MAC	Yes
Warranty	1 #ProductAttributes.Unit.Year#
