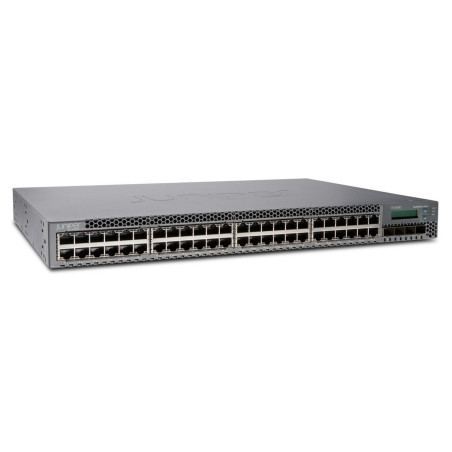

48x 1G Base-T, 4x 10G SFP+ 1

The EX3300 line of Ethernet Switches features Virtual Chassis technology to deliver a flexible, cost-effective enterprise access solution for demanding environments that support converged data, voice, and video. Virtual Chassis technology enables up to ten interconnected EX3300 switches to operate as a single, logical device, providing enterprises with a level of flexibility and management simplicity normally associated with higher-end access switches.

Multiple EX3300 options are available, offering 24 and 48 10/100/1000-T access ports and four dual mode (GbE/10GbE) SFP/SFP+ uplink ports, with or without support for standards-based IEEE 802.3af Class 3 Power Over Ethernet (PoE). PoE support enables the EX3300 to support networked devices such as telephones, video cameras, and wireless LAN (WLAN) access points. The EX3300 also supports the 802.3at PoE+ standard, offering additional power for devices such as multiple radio IEEE 802.11n wireless access points.

The EX3300 also offers data center-optimized cooling, with both front-to-back and back-to-front airflow options, making it suitable for GbE data center access deployments. A DC power supply option is also available.

All EX3300 models run the same modular Junos OS control plane feature implementation as other Juniper switches, routers and security devices, to provide a consistent set of features and capabilities across the Juniper network infrastructure.

Almacenar y reenviar	Yes
Capacidad	130 Mpps
Compatibilidad Jumbo frames	Yes
Máxima velocidad de transferencia de datos	176 Gbit/s
Número de colas	8
Tabla de direcciones MAC	16000 entradas
Velocidades de transferencia de datos admitidas	10, 100,1000Mbps
Color producto	Black
Factor forma	1U
Montaje en rack	Yes
Capa switch	L2
Soporte de calidad de servicio (QoS)	Yes
Tipo de switch	Managed
Soporte multicast	Yes
Agregación de enlaces	Yes
Auto MDI/MDI-X	Yes
Control broadcast storm	Yes
Estándares de red	IEEE 802.1ab/IEEE 802.1D/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3x/IEEE 802.3z
Número de VLANs	4096
Protocolo de árbol de expansión	Yes
Soporte 10G	Yes
Soporte de control de flujo	Yes
Soporte VLAN	Yes
Tecnología de cableado Ethernet de cobre	1000BASE-T/100BASE-TX/10BASE-T
Velocidades datos Ethernet LAN	10/100/1000 Mbit/s
Altitud de funcionamiento	0 - 3049 m
Altitud no operativa	0 - 4877 m
Humedad relativa de almacenamiento (H-H)	0 - 95 %
Humedad relativa de funcionamiento (H-H)	10 - 85 %
Temperatura de almacenamiento (T-T)	-40 - 70 °C
Temperatura de funcionamiento (T-T)	0 - 45 °C
Ethernet LAN	Yes
Método de autenticación	RADIUS, TACACS+
Tecnología de conectividad	Wired
Tipo de interfaz Ethernet	Gigabit Ethernet
Frecuencia procesador	1000 MHz
Memoria flash	1024 MB
Memoria interna	1024 MB
Sistemas operativos compatibles	Junos
Cantidad de ranuras para módulos SFP+	4
Cantidad de ranuras SFP/SFP+	4
Puertos de fibra	4
Puertos Ethernet RJ-45 de conmutación básica	48
Puertos Gigabit Ethernet (cobre)	48
Ranura ExpressCard	No
Consumo de energía (típico)	100 W
Fuente de alimentación	AC
Voltaje de entrada AC	100 - 240 V
Protocolos de gestión	SNMP v1/2c/3
Protocolos de red soportados	IPv6
Algoritmos de seguridad	SSH-2
IGMP snooping	Yes
Lista de control de acceso (ACL)	Yes
Warranty	1 #ProductAttributes.Unit.Year#
