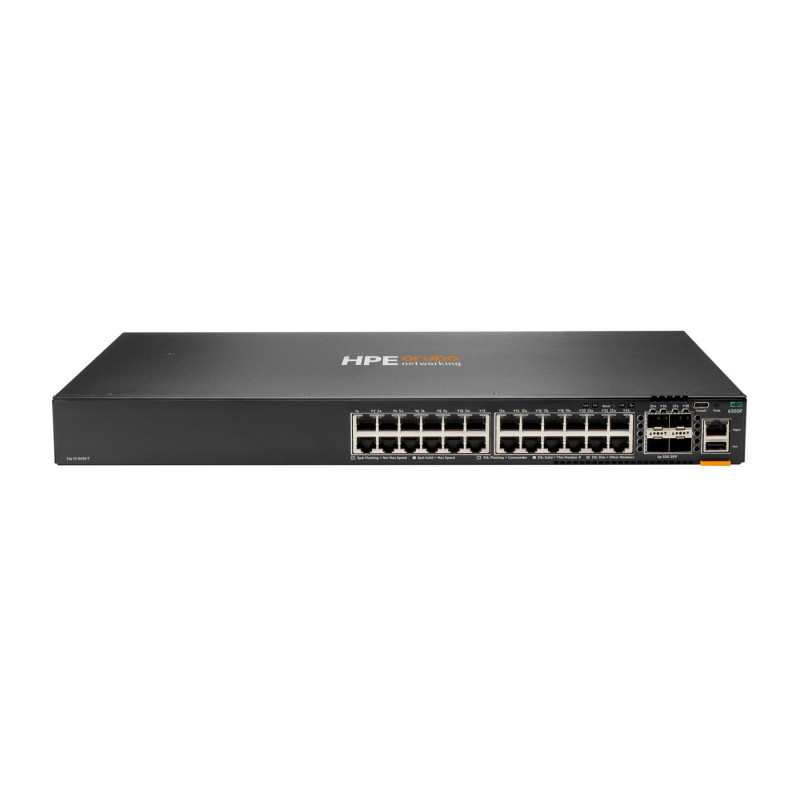

HPE Aruba Networking CX 6300F

The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for access, aggregation, and data center top-of-rack (ToR). Featuring a cloud-native design and fully programmable operating system (OS). The CX 6300 delivers advanced monitoring and troubleshooting with capabilities like a real-time network analytics engine, HPE Aruba Networking Switch Multi-Edit Software and flexible deployment options to implement and validate network configurations. A powerful Gen7 ASIC architecture delivers fast, non-blocking performance for AI, Wi-Fi 7, and Internet of Things (IoT) requirements. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in high-speed uplinks and supports high-density IEEE 802.3bt high-power PoE with HPE Smart Rate multi-gigabit Ethernet.

What is new supporting point:
The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF routing, robust quality of service (QoS), MACsec 256, PTP, AVB and LRM ^[1]
Three stackable Layer 2-only CX 6300L switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for high performance access deployments
Powerful 7th Gen ASIC architecture provides the CX 6300 series with 880 to 1760 Gbps system switching capacity, 660 to 1310 Mpps of system throughput and up to 200 to 400 Gbps stacking bandwidth
High availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
Options include 24 to 48-port of HPE Smart Rate multi-gigabit (1/2.5/5/10GbE) and 1GbE fiber, supporting up to 90W 802.11bt PoE, all with telemetry and automation via the CX Network Analytics Engine
Manage through single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic segmentation enables enhanced security and simple access for users and IoT

Capacidad	334 Mpps
Capacidad de conmutación	448 Gbit/s
Latencia (1 Gbps)	2,28 µs
Latencia (10 Gbps)	1,46 µs
Memoria de búfer de paquetes	8 MB
Número de colas	8
Apilable	Yes
Color producto	Black
Dirección del flujo de aire	Front-to-back airflow
Montaje en rack	Yes
Capa switch	L3
Configuración de ajustes de ubicación (CLI)	Yes
Registro de eventos del sistema	Yes
Soporte de calidad de servicio (QoS)	Yes
Tipo de switch	Managed
Entradas IPv4 multicast	8000
Entradas IPv6 multicast	8000
Número de grupos de multidifusión filtrados	8000
Soporte multicast	Yes
Agregación de enlaces	Yes
Auto MDI/MDI-X	Yes
Enrutamiento basado en directivas	Yes
Enrutamiento IP	Yes
Estándares de red	IEEE 802.1ab/IEEE 802.1ak/IEEE 802.1D/IEEE 802.1p/IEEE 802.1s/IEEE 802.1v/IEEE 802.1w/IEEE 802.3ad/IEEE 802.3ae/IEEE 802.3bt
Protocolo de árbol de expansión	Yes
Puertos en espejo	Yes
Soporte 10G	Yes
Soporte VLAN	Yes
Altitud de funcionamiento	0 - 3040 m
Altitud no operativa	0 - 4600 m
Humedad relativa de almacenamiento (H-H)	15 - 90 %
Humedad relativa de funcionamiento (H-H)	15 - 95 %
Temperatura de almacenamiento (T-T)	-40 - 70 °C
Temperatura de funcionamiento (T-T)	0 - 45 °C
Distancia de transmisión (máx.)	10 km
Dimensiones (AnxPxAl) (imperial)	1.73 x 17.4 x 12.9 "
Gestión del rendimiento	Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Latencia	1 Gbps: 2.28 μs 10 Gbps: 1.46 μs 25 Gbps: 1.90 μs 50 Gbps: 3.49 μs
Memoria y procesador	CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration
Peso (imperial)	9,61 libras
Ventilador	Fixed fans
Kit de montaje en rack	Yes
Apilamiento físico (unidades)	10
Frecuencia procesador	1800 MHz
Memoria flash	32000 MB
Memoria interna	8000 MB
Modelo procesador	ARM Cortex-A72
Nivel sonoro	31,6 dB
Procesador integrado	Yes
Tipo de memoria	DDR4-SDRAM
Cantidad de módulos SFP instalados	0
Cantidad de módulos SFP+ instalados	0
Cantidad de ranuras para módulos SFP	4
Puerto consola	USB
Puertos Ethernet RJ-45 de conmutación básica	24
Puertos USB 2.0	1
Tipo de puertos Ethernet RJ-45 de conmutación básica	Gigabit Ethernet (10/100/1000)
Consumo de energía (máx.)	63 W
Corriente de entrada	2.5/1.4 A
Frecuencia de entrada AC	50 - 60 Hz
Fuente de alimentación incluida	Yes
Nota consumo de energía	Idle: 49W 100% Traffic Rate: 63W
Número de fuentes de alimentación	1
Power supply note	Internal (fixed) power supply (200W)
Voltaje de entrada AC	200 - 240 V
Alimentación PoE	No
Protocolos de enrutamiento	OSPF/OSPFv3
Características DHCP	DHCP relay/DHCP server
Compatibilidad SSH/SSL	Yes
Entradas IGMP	8000
Lista de control de acceso (ACL)	Yes
Warranty	1 #ProductAttributes.Unit.Year#
