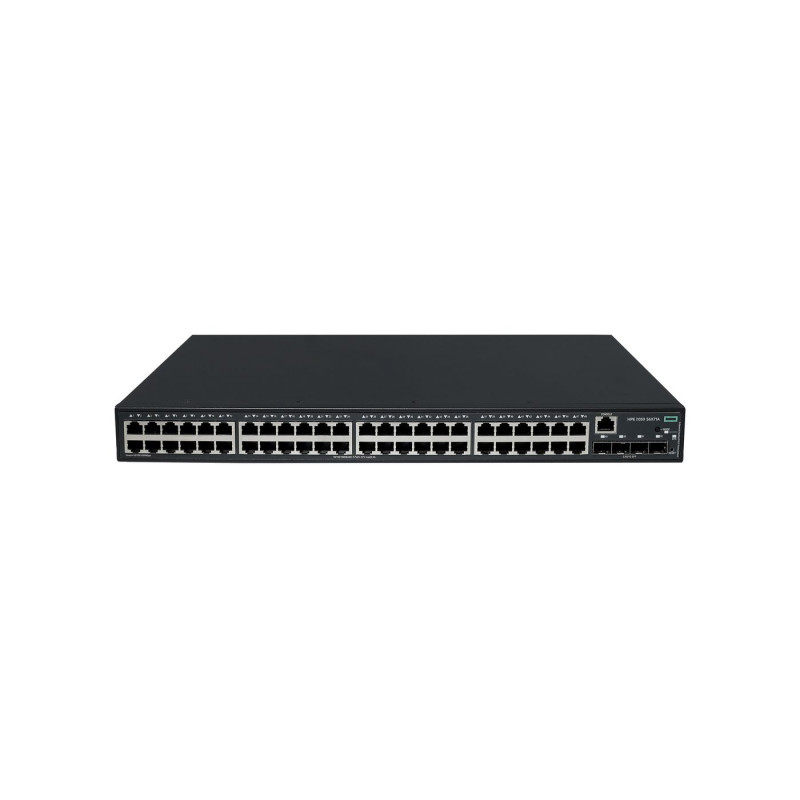

Networking Cw 2050 48P

HPE Networking CW 2050 Switch Series is designed to empower your business with next-level connectivity. Whether you run a small or medium-sized business, or manage branch offices, the CW 2050 series offers seamless, secure, and high-performance networking without the complexity or high cost. This fully managed, stackable switch features advanced HPE Smart Rate 1G/2.5G ports and high-power PoE to support a wide range of devices, from computers to IP phones and wireless access points. With intuitive management through a web GUI and the CW dashboard, setting up and monitoring your network is simple—even for non-IT experts. For more advanced needs, the CW 2050 series integrates easily using CLI, SNMP, or REST API, ensuring compatibility with your existing systems. Choose the CW 2050 series for a reliable, scalable, and affordable solution that grows with your business.

What is new supporting point:
24‑port non‑PoE model includes four HPE Smart Rate 1G/2.5G ports; 24‑port PoE model includes four PoE++ 1G/2.5G ports delivering up to 100 W per port
Powerful PoE provides up to 420 W (35 W per port) to support APs, IP phones, surveillance cameras, door locks, and other IoT devices
Fanless design on the 24‑port non‑PoE model for acoustically sensitive environments
Flexible, simplified management with default Web GUI, SmartMC management dashboard, CLI, SNMP, and REST API for integration with customer dashboards
Fully managed, stackable Layer 2 switch series with 24‑ and 48‑port non‑PoE and PoE models, supporting IRF stacking with up to two switches
Four dedicated 1G/2.5G SFP uplink ports

Capacidad	86,3 Mpps
Capacidad	116 Gbit/s
Capacidad de conmutación	116 Gbit/s
Latencia (1 Gbps)	5 µs
Memoria de búfer de paquetes	1 MB
Tasa de reenvío	86,3 Mpps
Apilable	Yes
Color producto	Black
Montaje en rack	Yes
Número de ventiladores	2 Ventilador(es)
Gestión basada en web	Yes
Tipo de switch	Managed
Soporte 10G	No
Disipación de calor	1020 BTU/h
Temperatura de funcionamiento (T-T)	-5 - 45 °C
Tecnología de cableado fibra Ethernet	1000BASE-X
Tipo de módulos ópticos de conmutación	Gigabit Ethernet
Dimensiones (AnxPxAl) (imperial)	15.12 x 21.97 x 5.31 "
Latencia	1 GE: ≤5μs (64 byte LIFO)
Memoria y procesador	CPU: Single-core Arm 1.25 GHz Flash: 256 MB Packet buffer: 1 MB
Peso (imperial)	12,125 libras
Puertos E/S	48x 10/100/1000BASE-T PoE+ ports 4x 1G/2.5G BASE-X SFP ports 1x RJ-45 console port
Ventilador	2
Fabricante del procesador	ARM
Frecuencia procesador	1250 MHz
Memoria flash	256 MB
Memoria interna	256 MB
Procesador integrado	Yes
Tipo de memoria	Flash
Cantidad de ranuras para módulos SFP	4
Conector de fibra óptica	SFP
Puerto consola	RJ-45
Puertos de fibra	4
Puertos Ethernet RJ-45 de conmutación básica	48
Puertos Gigabit Ethernet (cobre)	48
Tipo de puertos Ethernet RJ-45 de conmutación básica	Gigabit Ethernet (10/100/1000)
Consumo de energía (típico)	25 W
Frecuencia de entrada AC	50/60 Hz
Fuente de alimentación	AC
Fuente de alimentación incluida	Yes
Nota consumo de energía	25W, AC
Power supply note	Internal, 90V–264V AC
Voltaje de entrada	100 - 240 (rated); 90 - 264 (max) V
Voltaje de entrada AC	100 - 240 V
Alimentación PoE	Yes
Alimentación PoE por puerto	35 W
Cantidad puertos PoE	48
Presupuesto total alimentación PoE	410 W
Puertos PoE+	48
Tipo alimentación PoE soportada	PoE+
Protocolos de gestión	Web GUI; CLI; SmartMC; IMC; AirWave; SNMP; RestAPI
Algoritmos de seguridad	SNMP
Warranty	1 #ProductAttributes.Unit.Year#
