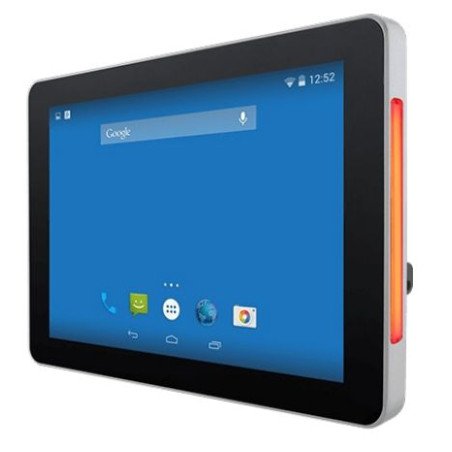

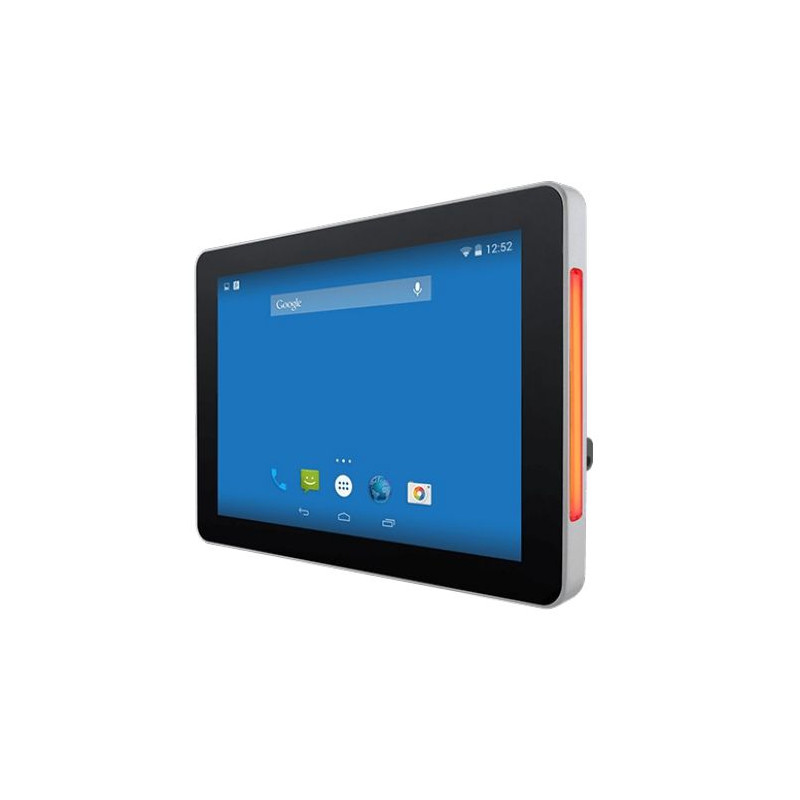

10.1" NXP i.MX6 S Series HMI

This Item:
1280x800
CPU: NXP Cortex A9 iMX6 Dual Core 1.0Ghz
System memory: 1GB DDR3L
Storage: on board eMMC16GB
With P-Cap touch
IP65 at front
OS: Android 6.0
light bar : on the right/left
built-in PoE
Built-in HF RFID reader
______________________________________________
Power over Ethernet (Data and Power connections in a single cable)
The hardware installation becomes easier with Power over Ethernet. PoE reduces the number of cables needed for the connection of various devices. This infrastructure allows for centralized power management; therefore, it is a cost­effective solution for access control, home, and industrial automation.
Stylish Design
Winmate’s S­series HMIis 35% thinner than a traditional Panel PC. With the slim design, it has an aesthetically pleasing look that fits modern interiors and exteriors. Its true flat surface is not only for a stylish look but easy to maintain and clean. No more clogged dust on the edges.
P­Cap Touch (Resistant to scratches)
The glass cover lens provides great protection from scratches. P­Cap Touch supports 4­point multi­touch and can easily be controlled by fingers. This technology allows enjoying every touch and improving the convenience of using the device. Thus, it helps to enhance the overall customer experience.
LED Light Bar (Indicates the status of the machine or process afar) and HF RFID/NFC (Limited Access Control)
LED Light Bar is designed to control the status of the running processes afar, yet saving energy by keeping a display turned off. The settings are easily programmable according to your preferences. Choose one of the four colors ­ red, green, blue, or orange to send valuable messages based on your settings. Also, HF RFID/NFC helps to limit the access to only the personnel in charge. Greater control for security purposes is now available with S­Series HMI.
Front IP65 (Water and Dust Proof)
Don';t worry whether somebody split the coffee over S­Series HMI, or if the raindrops reach the device! This HMI is sealed with IP65 on the front side and is protected against possible damages from outer dust and water splash.
GENERIC KEY FEATURES
10.1” 1280 x 800 Resolution with Projected Capacitive Multi­Touch (PCAP)
Fanless cooling system and ultra­low power consumption
Support PoE function
Optional 2MP Front Camera
Optional HF RFID Reader
Stylish design for room booking, access control and room information applications
Front IP65 Water and Dust Proof
Built­in RGB LED Light Bar Indicator
