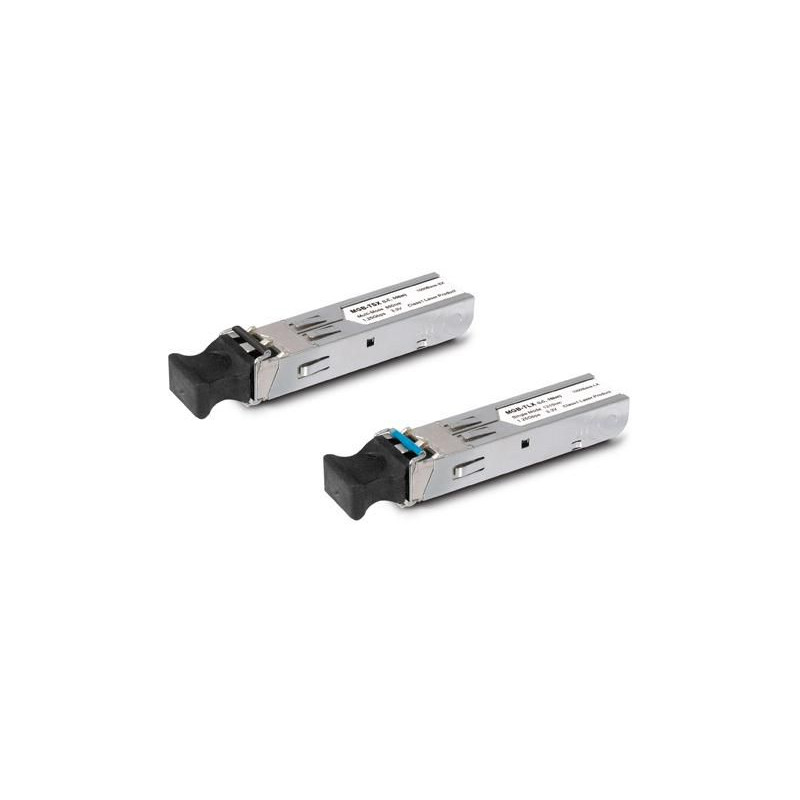

Mini GBIC WDM TX1310 Module - Ref. MGB-LA20

The MGB family consists of Small Form Factor Pluggable (SFP) transceiver modules that are specifically designed for high performance integrated duplex data link over single mode optical fiber. These transceiver modules are compliant with the SFP Multisource Agreement (MSA) and hot pluggable. These modules offer an easy way to be installed in SFP MSA compliant ports at any time without the interruption of the host equipment operation.

The MGB family of SFP Mini-GBIC Gigabit Ethernet modules can be installed in PLANET Switch products with SFP mini-GBIC interface. The deployment distance can be extended from 100 meters (TP), 550 meters (Multi-Mode, LC), and up to 120 kilometers (Single-Mode, LC).

To meet the increasing demand of the Industrial Ethernet fiber solution, Planet releases the MGB-T series 1000BASE-SX/LX/BX transceivers that can operate reliably in electrically harsh, climatically demanding, and wide temperature range (-40℃ to 75℃) environment. The MGB-T series 1000BASE-SX/LX/BX transceivers provide easy and fast 1000BASE-SX/LX/BX connection for Planet wide temperature industrial equipment.

Plug and play	Yes
Soporte Hot-Plug	Yes
Temperatura de funcionamiento (T-T)	0 - 60 °C
Compatible con fibra monomodo (SMF)	Yes
Conector de fibra óptica	LC
Estándares de red	IEEE 802.3ah
Fibra multimodo (MMF) soportada	No
Longitud de onda	1310 nm
Máxima distancia de transferencia	20000 m
Máxima velocidad de transferencia de datos	1000 Mbit/s
Multiplexación por división de longitud de onda (WDM)	Yes
Tipo de interfaz	SFP
Tipo de transceptor SFP	Fiber optic
Transceptor SFP estándar	BX
Garantía	3 años
