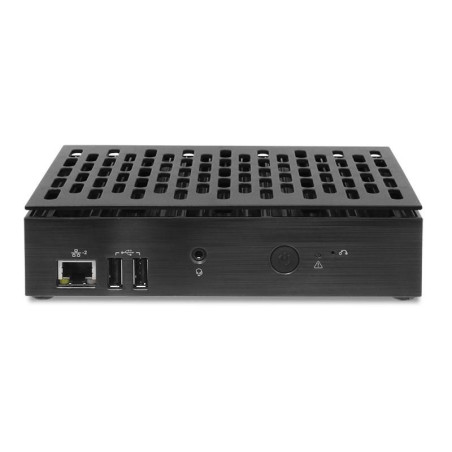

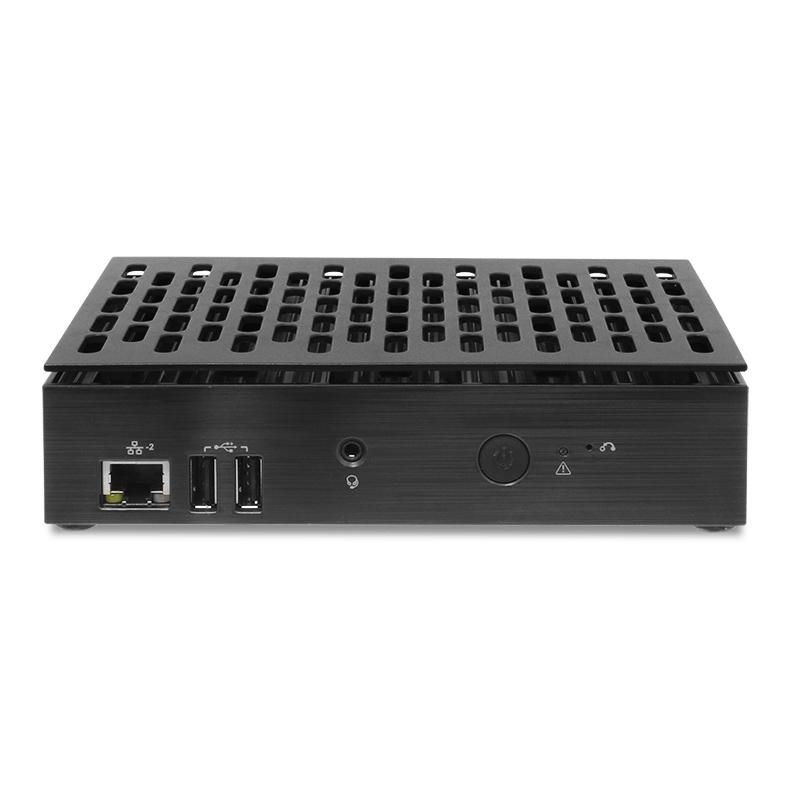

De3650 Intel? Celeron? N6210

Intel® Celeron® Processor J6412, Fanless design with remote management UHD (4K) media player.

UHD (4k) content playback
DE3650 is capable of driving 2x UHD (4k) content. With a resolution that goes up to 3840x2160 pixels your content will be close to perfect. This feature makes the players that are capable of delivering content that is fluent and stutter free in UHD (4k).

-20degC operating temperature
AOPEN has good experience in mechanism and electronic design. It has designed a good body temperature control for DE3650. The equipment can operate normally even at a low temperature of minus 20 degrees C. It is suitable for industrial or outdoor applications that require low temperatures.

Fanless design
With fanless design, the device is passively cooling and is dustproof. Therefore, it's very suitable for segments such as industry.

Small form factor
This form factor ensures an easy integration into kiosks or behind screens. The AOPEN small form factor is a standard that is used for Digital Engine (DE) models. The size of DE3650 is 166x35x110 mm. the mount hole of bracket just same as DE series

Trusted Platform Module 2.0
The TPM is a dedicated micro controller, designed to secure hardware through integrated cryptographic keys. This means the data on your hard drive will be encrypted to ensure your data is safe, even when your device gets stolen.

AOPEN intelligent Control
AOPEN Intelligent Control (AiCU) is built for global enterprise brands, AiCU enables network operators with an intelligent device management solution that automates industrial and commercial applications. AiCU brings cloud service and advanced embedded device control technology together into a single dashboard.

Support AOPEN AiCU Out-of-Band (OOB) remote management (optional)
The AiCU Out-of-Band (OOB) Endpoint Management Solution provides a hardware-based comprehensive device management tool that is not dependant on host Operating System functionality. AiCU OOB lowers your Total Cost of Ownership by reducing on-site maintenance and allowing full software patch and update control.

Chip de audio	Realtek ALC897
Color producto	Black
Tipo de chasis	Mini PC
Volumen	0,68 L
Pantalla incluida	No
Familia de tarjetas gráficas integradas	Intel® UHD Graphics
Modelo de tarjeta gráfica discreta	Not available
Modelo de tarjeta gráfica integrada	Intel® UHD Graphics
On-board GPU manufacturer	Intel
Tarjeta gráfica discreta	No
Tarjeta gráfica integrada	Yes
Diseño de memoria (ranuras x tamaño)	1 x 4 GB
Máxima memoria interna	20 GB
Memoria interna	4 GB
Ranuras de memoria	2x SO-DIMM
Tipo memoria interna	DDR4-SDRAM
Velocidad de reloj de memoria	2666 MHz
Ethernet LAN	Yes
Velocidades datos Ethernet LAN	10/100/1000 Mbit/s
Wi-Fi	No
Humedad relativa de funcionamiento (H-H)	0 - 90 %
Temperatura de almacenamiento (T-T)	-30 - 60 °C
Temperatura de funcionamiento (T-T)	-20 - 40 °C
Período de garantía	2 año(s)
Módulo plataforma segura (TPM)	Yes
Posicionamiento en el mercado	Business
Tipo de producto	Mini PC
Cantidad Mini DisplayPorts	1
Conector jack de entrada DC	Yes
Puerto combo auriculares/micrófono	Yes
Puertos HDMI	1
Puertos LAN Ethernet (RJ-45)	3
Puertos Thunderbolt 3	0
Puertos USB 2.0	4
Puertos USB 3.2 Gen 1 (3.1 Gen 1) Type-A	2
Puertos USB 3.2 Gen 1 (3.1 Gen 1) Type-C	0
Puertos USB 3.2 Gen 2 (3.1 Gen 2) Tipo-C	0
Puertos USB 3.2 Gen 2 (3.1 Gen 2) Type-A	0
Puertos USB 3.2 Gen 2x2 Type-C	0
Versión HDMI	2.0
Fuente de alimentación	40 W
Voltaje de entrada fuente de alimentación	100 - 240 V
Fabricante procesador	Intel
Frecuencia procesador	1,2 GHz
Modelo procesador	N6210
Sistema operativo instalado	No
Capacidad total de almacenamiento	64 GB
Dispositivo almacenamiento	eMMC
Tipo de unidad óptica	No
Garantía	1 año
