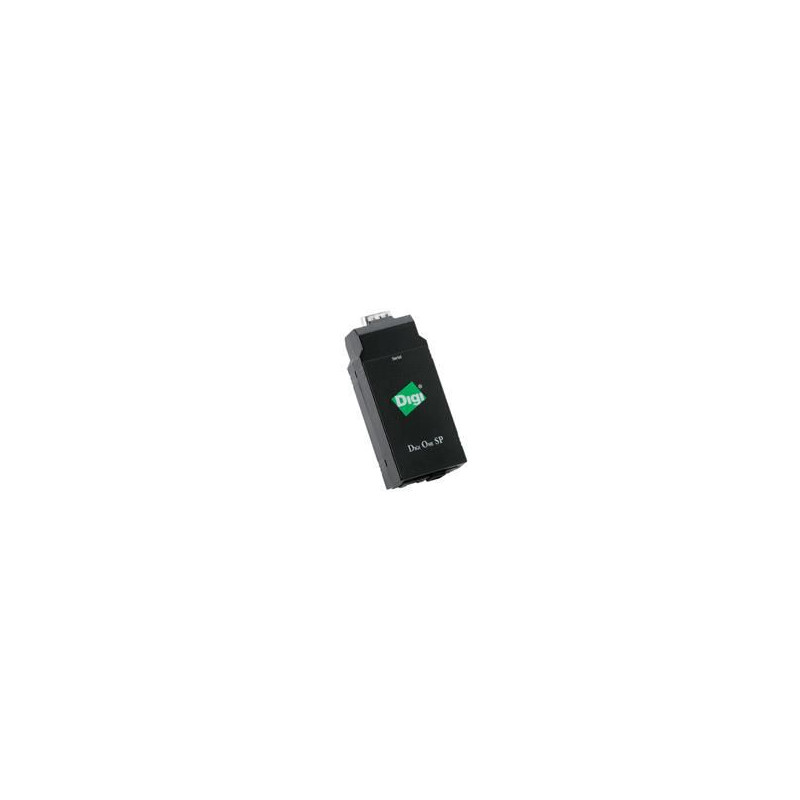

One Sp Serial Server

Features:

- High-performance device networking solution
- TCP/UDP Socket Services for broad device connectivity
- Switch selectable RS-232/422/485
- RealPort for COM/TTY port control and management
- Reverse Telnet for easy access to serial devices

Digi One SP provides reliable and cost-effective network connectivity for virtually any type of serial device. It features one of the smallest form factors available, industry leading low latency, baud rates up to 230 Kbps and full modem and hardware control. This compact and powerful serial-to-Ethernet solution is ideal for applications requiring simple and easy-to-use data communications.

Digi One SP supports a wide range of protocols using serial tunneling, TCP/UDP connections or Digi’s patented RealPort COM port redirector for remote native COM port access. RealPort enables existing applications to communicate, without modification, with serial devices over the Ethernet as if they were communicating over a serial cable. Additionally, Digi One SP features modem emulation, allowing equipment designed for modem access to communicate transparently across the Ethernet.
Digi One SP is easy to install locally or remotely. The IP address can be configured using DHCP, ARP-Ping or Setup, an application included with the installation CD that automatically detects all Digi One devices on the network. Users can auto-connect a serial device to a networked server using raw, Telnet or rlogin. Advanced functions can be configured into an application using the web interface.

Seguridad	UL 60950, EN60950, CAN/CSA C22.2 No.60950
LED link/act	Yes
Humedad relativa de funcionamiento (H-H)	5 - 90 %
Temperatura de funcionamiento (T-T)	10 - 45 °C
Puertos LAN Ethernet (RJ-45)	1
Puertos USB 2.0	0
Consumo de energía	0,5 mA
Voltaje de entrada	9 - 30 V
Protocolos de red soportados	TCP/UDP, UDP Multicast, Telnet, Reverse Telnet, RFC2217, DHCP/RARP/ARP-Ping
Certificación	FCC Part 15 Subpart B (Class A), EN55024, EN55022 (Class A), EN61000-3-2,3
Puertos serie	1
Tensión de protección contra sobretensiones	4 kV
Tipo de interfaz serie	RS-232/422/485
Velocidad de datos de rendimiento	230 Kbit/s
Velocidades datos Ethernet LAN	10/100 Mbit/s
Garantía	1 año
Dimensiones (AnxPxAl)	43 x 94 x 23 mm
