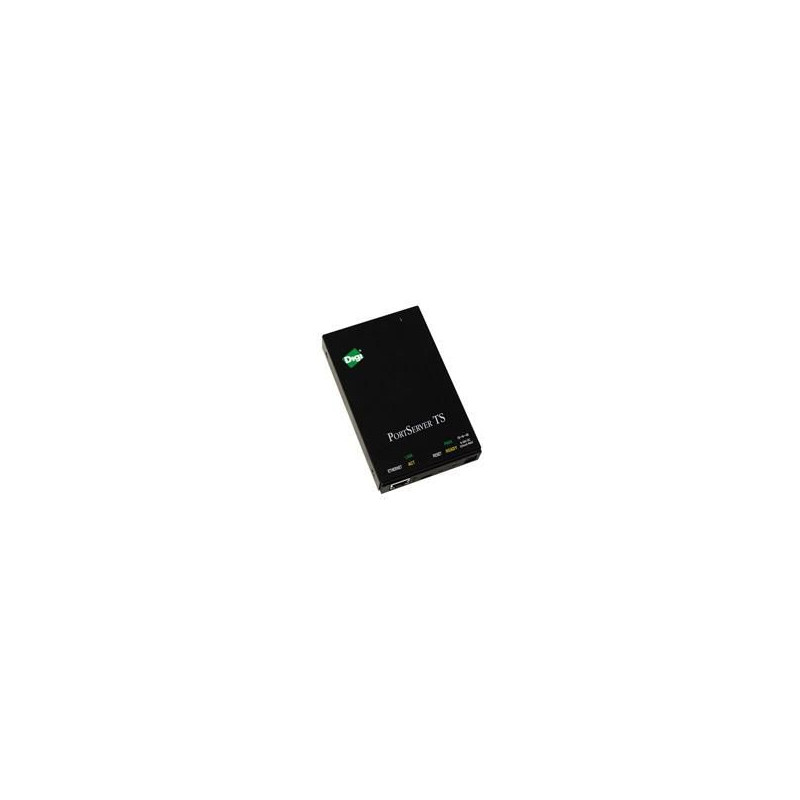

Portserver Ts 4 Serial Server

Features:

- 1, 2 or 4 RS-232 RJ-45 serial ports
- 9-30VDC power supply

PortServer TS serial servers offer a simple, reliable and cost-effective solution for connecting multiple serial devices over industry standard Ethernet. They are available with one, two or four RS-232 serial ports. Target applications for PortServer TS include retail/point-of-sale, building control and medical point-of-care.

PortServer TS is ideal for applications requiring COM ports or where TCP/UDP Sockets, or UDP multicast functionality is required. It includes Digi’s patented RealPort COM port redirector technology, which makes it possible to establish a connection between the host and networked serial device by creating a local COM or TTY port on the host computer, allowing existing software applications to work without modification.

Seguridad	UL 1950
LED link/act	Yes
Humedad relativa de funcionamiento (H-H)	5 - 95 %
Temperatura de almacenamiento (T-T)	-40 - 85 °C
Temperatura de funcionamiento (T-T)	0 - 60 °C
Puertos LAN Ethernet (RJ-45)	1
Puertos USB 2.0	0
Voltaje de entrada	9 - 30 V
Protocolos de red soportados	UDP/TCP, DHCP/RARP/ARP-Ping, PPP, Telnet RFC 2217, Telnet, Reverse Telnet,Modbus to Modbus/TCP, SNMP
Algoritmos de seguridad	HTTPS/SSH/SSL/TLS
Aislamiento	1,5 kV
Certificación	CE, FCC Part 15 (Class A), EN55034, EN55022 Class A
Estándares de red	IEEE 802.3
Protección contra descargas electrostáticas (ESD)	15 kV
Protocolos de gestión	SNMP,HTTP/HTTPS, DHCP
Puertos serie	4
Tensión de protección contra sobretensiones	4 kV
Tipo de interfaz serie	RS-232
Velocidad de datos de rendimiento	230 Kbit/s
Velocidad de transferencia de datos	100 Mbit/s
Velocidades datos Ethernet LAN	10/100 Mbit/s
Garantía	1 año
Dimensiones (AnxPxAl)	84.6 x 133.4 x 24.2 mm
