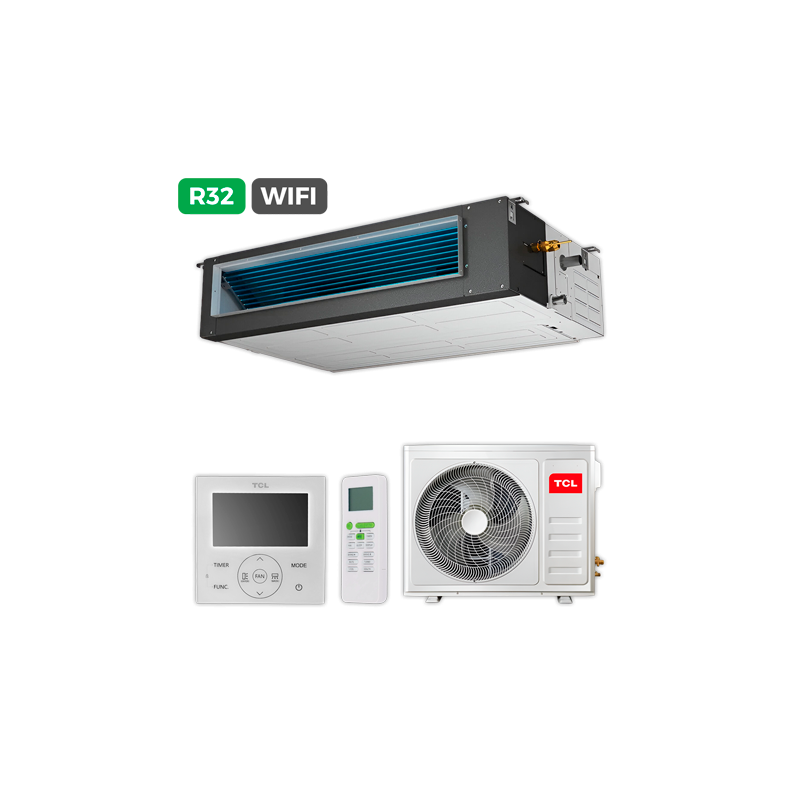

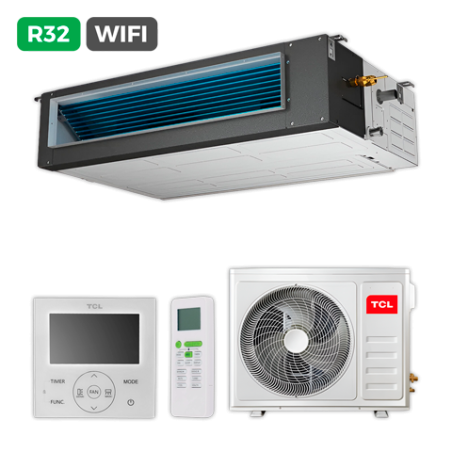

Aire TCL CONDUCTOS M18D1W2

AC Smart Air, Soft Care
MONO SPLIT LIGHT COMMERCIAL AIR CONDITIONER
Super Slim Air duct D Series
M18D1W2
Cooling
Heating
Ultra-thin Design Fresh Air Intake Drain Pump
Ultra-thin body for concealed installation and To make indoor air healthier and more comfor- For convenient to installation and improving
can match a variety of decoration styles. table. drainage eciency.
Wide Range of Static Pressure Flexible Installation Dual Drainage
Providing comfortable flow to multiple area. You can choose back air intake or down air You can choose to drain from the left or right.
intake.
Hotel Mode
Door Card, Window Switch, Fire Alarm Wire Controller Compliant To BMS System & Airzone
When a guest exits the room and removes the Guests can easily adjust the temperature and Compliant to building management system and
door card, when a window is left open, in the settings according to their preference. Airzone for more convenient monitoring and
event of a fire alarm : control
The air conditioner is programmed to automa-
tically power down.
AC Smart Air, Soft Care
MONO SPLIT LIGHT COMMERCIAL AIR CONDITIONER
Super Slim Air duct D Series
M18D1W2
Functions
Ultra-Thin Fresh Air Built-In Drain Flexible Dual Drainage Hotel Mode Wired Control/ IOT Wifi Inverter Heating & Cooling Under Heating Under Cooling Heating
Design Intake Pump Installation Remote Control Control Technology Cooling Extreme Extreme
Condition Condition
Technical Specifications
Air Duct
Model Name M18D1W2
Ean Code 8720568107271
Indoor unit model name MN18DW2
Ean code 8720568107400
Outdoor unit model name MT1813
Ean code 8720568107431
Main Specifications
Declared cooling capacity (mini-maxi) Btu/h 16050(2115~17400)
Declared cooling capacity (mini-maxi) W 4700(620~5100)
Pdesignc W 5000
Cooling Indoor cooling operating current A 0,21
Indoor cooling power consumption (mini-maxi) W 48
Outdoor cooling operating current (mini-maxi) A 6.8(1.6~12.0)
Outdoor cooling Power consumption (mini-maxi) W 1480(200~2150)
Declared heating capacity (mini-maxi) Btu/h 16050(2590~18150)
Declared heating capacity (mini-maxi) W 4700(760~5320)
Pdesignh average W 3900
Heating Indoor heating operating current A 0,21
Indoor heating power consumption W 48
Outdoor heating operating current (mini-maxi) A 6.0(1.7~12.0)
Outdoor heating power consumption (mini-maxi) W 1390(230~2150)
Performance
Cooling EER declared 3,20
SEER declared 6,1
Heating COP average declared 3,20
SCOP declared 4
Moisture removal L/h 2
Indoor sound power (s/h/m/l/mute) dB (A) 56/53/50/48/46/42/38
Outdoor sound power dB (A) 65
Indoor sound pressure (s/h/m/l/mute) dB (A) 46/43/40/38/36/32/28
Outdoor sound pressure dB (A) 55
Energy Class
Cooling A++
Heating A+
Outdoor Operating Temperature Range
Cooling mode °C 15 / 53°C
Heating mode °C -20 / 30°
Logistic Data
Product size (w x h x d) mm 920×200×490
Indoor Product weight kg 18
Unit Packaging size (w x h x d) mm 1120×250×555
Packaging weight kg 21
Product size (w x h x d) mm 853×602×349
Outdoor Product weight kg 30
Unit Packaging size (w x h x d) mm 890×628×385
Packaging weight kg 32,5
Electrical Connection
Power supply Indoor Unit 220-240V ~/50Hz/1P
Power supply Outdoor Unit 220-240V~/50Hz/1P
Connecting wiring (core x size)
Refrigeration Fluid And Connection
Refrigerant type R32
Charge 0.96kg
Gwp 675
Co2 equivalent 0.648tonnes
Max. refrigerant pipe length(m) m 25
Max. dierence in level m 10
Gas connecting pipe Inches 3/8"
Liquid connecting pipe (inches) Inches 1/4"

*Warranty may vary by country / Specifications are subject to change without notice / Photos are not contractual.
