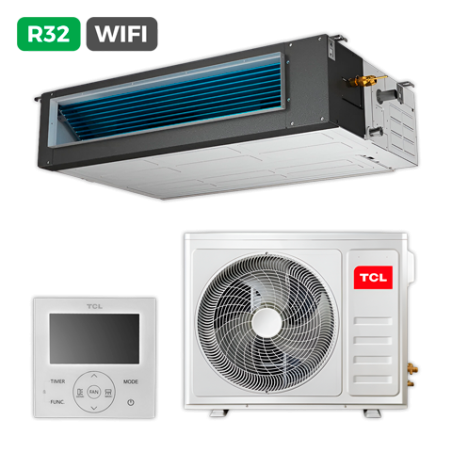

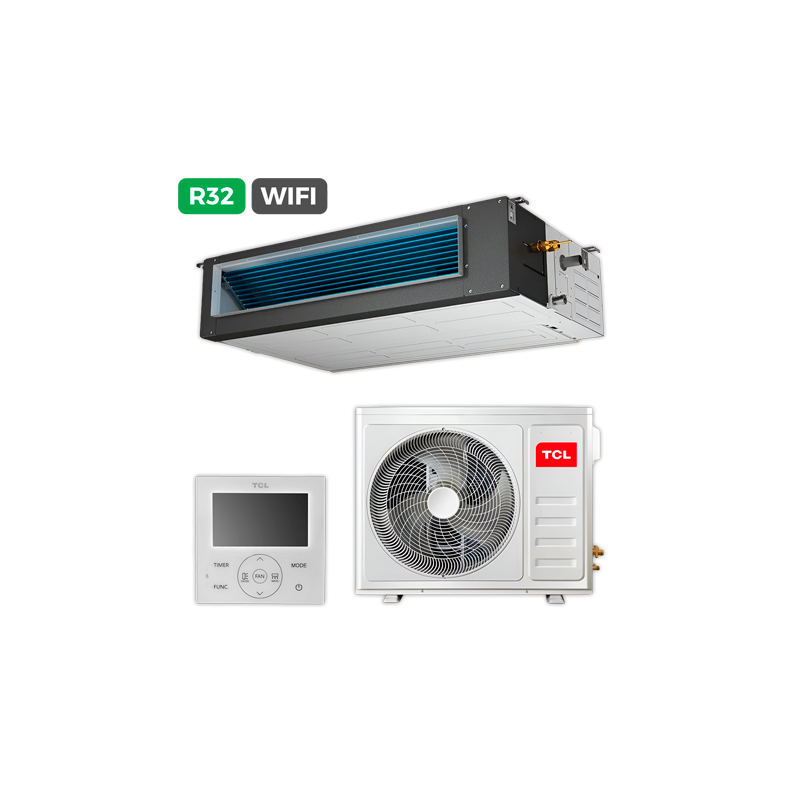

Aire TCL CONDUCTOS M36D1W1

AC Smart Air, Soft Care
MONO SPLIT LIGHT COMMERCIAL AIR CONDITIONER
Super Slim Air duct D Series
M36D1W1
Cooling
Heating
Ultra-thin Design Fresh Air Intake Drain Pump
Ultra-thin body for concealed installation and To make indoor air healthier and more comfor- For convenient to installation and improving
can match a variety of decoration styles. table. drainage eciency.
Wide Range of Static Pressure Flexible Installation Dual Drainage
Providing comfortable flow to multiple area. You can choose back air intake or down air You can choose to drain from the left or right.
intake.
Hotel Mode
Door Card, Window Switch, Fire Alarm Wire Controller Compliant To BMS System & Airzone
When a guest exits the room and removes the Guests can easily adjust the temperature and Compliant to building management system and
door card, when a window is left open, in the settings according to their preference. Airzone for more convenient monitoring and
event of a fire alarm : control
The air conditioner is programmed to automa-
tically power down.
AC Smart Air, Soft Care
MONO SPLIT LIGHT COMMERCIAL AIR CONDITIONER
Super Slim Air duct D Series
M36D1W1
Functions
Ultra-Thin Fresh Air Built-In Drain Flexible Dual Drainage Hotel Mode Wired Control IOT Wifi Inverter Heating & Cooling Under Heating Under Cooling Heating
Design Intake Pump Installation Control Technology Cooling Extreme Extreme
Condition Condition
Technical Specifications
Air Duct
Model Name M36D1W1
Ean Code 8720568105383
Indoor unit model name MN36DW1
Ean code 8720568105727
Outdoor unit model name MT3611
Ean code 8720568105949
Main Specifications
Declared cooling capacity (mini-maxi) Btu/h 36000(10500~42000)
Declared cooling capacity (mini-maxi) W 10550(3080~12300)
Pdesignc W 10550
Cooling Indoor cooling operating current A 1.1(0.4~1.3)
Indoor cooling power consumption (mini-maxi) W 250(80~280)
Outdoor cooling operating current (mini-maxi) A 15.1(0.8~19.7)
Outdoor cooling Power consumption (mini-maxi) W 3300(170~4320)
Declared heating capacity (mini-maxi) Btu/h 40000(11200~46000)
Declared heating capacity (mini-maxi) W 11720(3280~13500)
Pdesignh average W 8500
Heating Indoor heating operating current A 1.1(0.4~1.3)
Indoor heating power consumption W 250(80~280)
Outdoor heating operating current (mini-maxi) A 15.1(1.2~16.1)
Outdoor heating power consumption (mini-maxi) W 3300(270~3520)
Performance
Cooling EER declared 2,97
SEER declared 6,1
Heating COP average declared 3,3
SCOP declared 4,3
Moisture removal L/h 3,6
Indoor sound power (s/h/m/l/mute) dB (A) 62/59/57/55/54
Outdoor sound power dB (A) 67
Indoor sound pressure (s/h/m/l/mute) dB (A) 52/49/47/45/44
Outdoor sound pressure dB (A) 57
Energy Class
Cooling A++
Heating A+
Outdoor Operating Temperature Range
Cooling mode °C 15 / 50°C
Heating mode °C -15 / 24°C
Logistic Data
Product size (w x h x d) mm 1140×710×270
Indoor Product weight kg 36
Unit Packaging size (w x h x d) mm 1341×830×341
Packaging weight kg 41
Product size (w x h x d) mm 910×804×378
Outdoor Product weight kg 55
Unit Packaging size (w x h x d) mm 1022x835x480
Packaging weight kg 60
Electrical Connection
Power supply Indoor Unit 220-240V ~/50Hz/1P
Power supply Outdoor Unit 220-240V~/50Hz/1P
Connecting wiring (core x size)
Refrigeration Fluid And Connection
Refrigerant type R32
Charge 2.10kg
Gwp 675
Co2 equivalent 1.418tonnes
Max. refrigerant pipe length(m) m 50
Max. dierence in level m 30
Gas connecting pipe Inches 5/8"
Liquid connecting pipe (inches) Inches 3/8"

*Warranty may vary by country / Specifications are subject to change without notice / Photos are not contractual.
