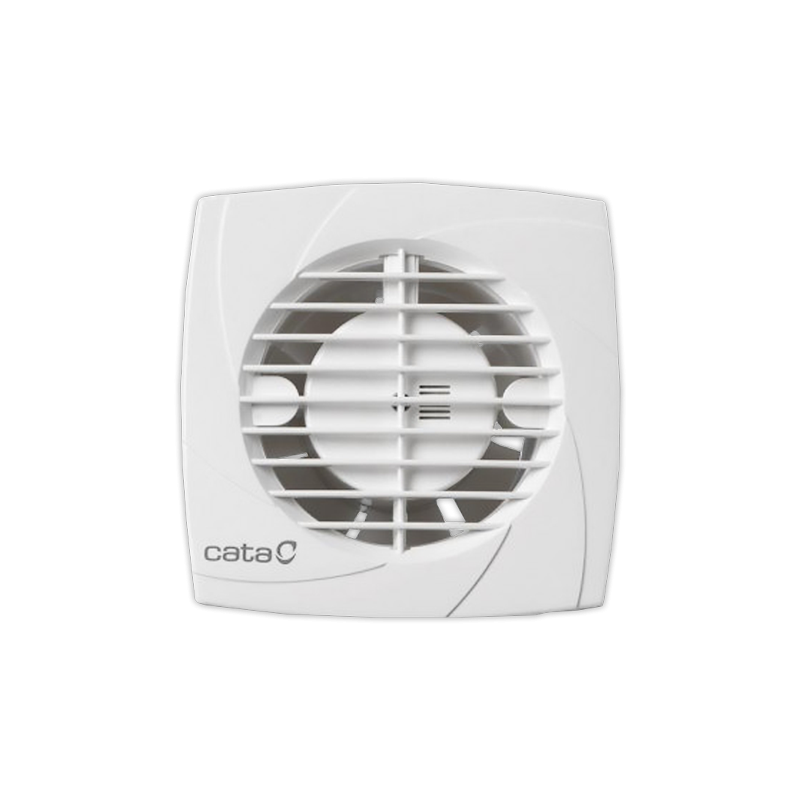

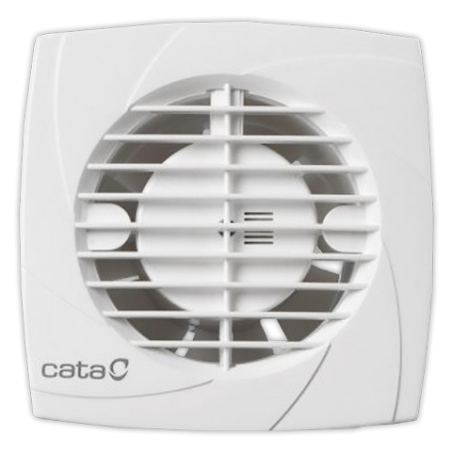

Extractor baño CATA B10 PLUS

AXIALBATHROOM FANS
B-PLUS
Axial fans for bathrooms, very slim, to be installed
in ceiling or wall.
SLIM
Very slim, recessed design.
◉
Plastic housing and impeller.
◉
220-240V 50/60Hz motors, insulation class B and thermal cut out,
◉
ambient temperature max. 40ºC.
Pilot light in HUMIDISTAT version and B15 PLUS models.
◉
CODE MODEL COLOUR EAN CODE VERSION Ø (mm) Voltage Speed Imput Maximum Sound Weight
(V) (r.p.m) Power AirFlow Pressure
3 (Kg)
(W) (m /h) Level
dB(A)
HYGRO SERIES
00981401 B10 PLUS H 8422248050876 100 230 2500 15 98 41 0,6
TIMER SERIES
00981101 B10 PLUS T 8422248049566 100 230 2500 15 98 41 0,6
00982100 B12 PLUS T 8422248113489 120 230 2450 20 190 43 0,8

00983100 B15 PLUS T 8422248114257 150 230 2100 28 320 43 0,9
STANDARD SERIES
00990000 B8 PLUS 8422248113168 90 230 2500 15 70 39 0,57
00281000 STOCK B10 PLUS 8422248047210 100 230 2500 15 98 41 0,6
00282000 STOCK B12 PLUS 8422248053969 120 230 2450 20 190 43 0,8
00283000 STOCK B15 PLUS 8422248047227 150 230 2100 28 320 43 0,9
00981001 SPECIAL B10 PLUS 8422248047906 100 230 2500 15 98 41 0,6
00982000 SPECIAL B12 PLUS 8422248113472 120 230 2450 20 190 43 0,8
00983000 SPECIAL B15 PLUS 8422248114226 150 230 2100 28 320 43 0,9
DIMENSIONS mm
Ø A B C D
B - 8 PLUS 86 140 88 10
B - 10 PLUS 98 140 85 10
B - 12 PLUS 118 170 100 13
B - 15 PLUS 148 190 112 15
STANDARD In combination with TIMER Electronic timer adjustable
light, fans switches on. from 3 to 15 minutes.
PERFORMANCECURVES
