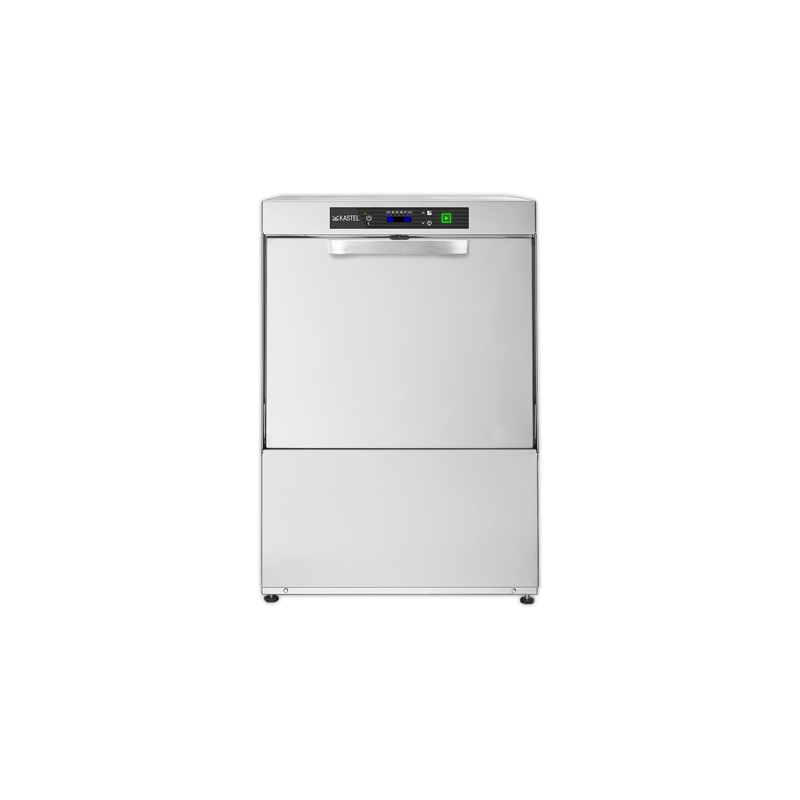

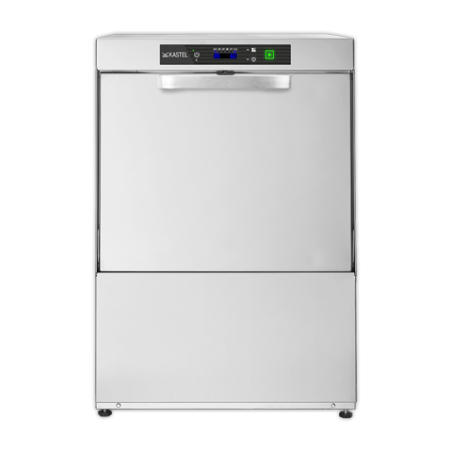

Lavavasos Industrial KASTEL KSFK40ESIPA

TECHNICAL DATA SHEET

Mod. FK 40ESI PA






EQUIPMENT AS GLASSWASHER
• 2 glass racks 40x40 cm
• 1 cutlery holder
• 1 insert for 12 saucers
• 1 inlet hose (length 2 mt)
• 1 drain hose (length 2,5 mt)
OPTIONS
• Round basket equipment (RB)
• Built-in automatic water softener (S)
GENERAL FEATURES • Electric detergent dispenser (DD)
• Rack dimensions; 40x40 cm • Drain pump (DP)
• Net weight: 37 Kg • KIT surface filters
• Wash cycles / racks per hour: 90”-120”-180”-9’ / • KIT high feet (95÷140mm)
40-30-20-7 • KIT booster pump
• Composite material wash/rinse bottom arm • 60 Hz version
easily removable
• Composite material rinse top arm easily removable WATER TREATMENT ACCESSORIES
• Wash pump: 190 W • Automatic water softener
• Boiler capacity: 3 lt
• Tank capacity: 12 lt ACCESSORIES
• Boiler heating element: 2,7 kW • Stainless steel stand H 550 mm
• Tank heating element: 2,4 kW • Special racks
• Water quantity per cycle: 2 lt
• Useful washing height: 300 mm WATER SUPPLY CONNECTION
• Electronic management with 6-character LED • Water supply hardness:
display showing boiler and tank Water hardness between 0 and 14°f (0 ÷ 8°d)
temperatures, multicoloured start button and Above 14°f (8°d) suggested water softener
self-diagnostic system • Water supply dynamic pressure:
• Electric rinse aid dispenser Standard between 2 and 5 BAR
• Backflow prevention device With built-in water softener between 2 and 4 BAR
• Thermostop function (hot rinse) • Water supply temperature:
• Green function for energy saving Standard between 10 and 60°C
• Automatic end of day self-cleaning cycle With built-in water softener between 10 and 25°C

FILTRATION MAIN POWER SUPPLY
• Plastic wash pump filter, easily removable • The voltage of main power supply must be
compatible with the rated voltage
• The machine must be connected to a
BODY suitable earth (ground) system
• AISI 304 stainless steel structure • Connect the machine power socket to the
• Partial double skinned body multi- pole wall switch provided
• Preformed wash tank with rounded corners
to avoid grime build-up TECHNICAL SPECIFICATIONS
• Preformed rack guides • Electrical supply: 220-240V~ 50 Hz
• Double walled door • Total power: 2,89 kW
• Door handle in s/s • Absorbed current: 13 A
• 30/10 door reinforcement brackets for extra strength 2
• Boiler in stainless-steel AISI 304 • Power cord supply size: 3 x 2,5 mm
ED. 01/2025



FK 40 ESI PA



ED. 01/2025
