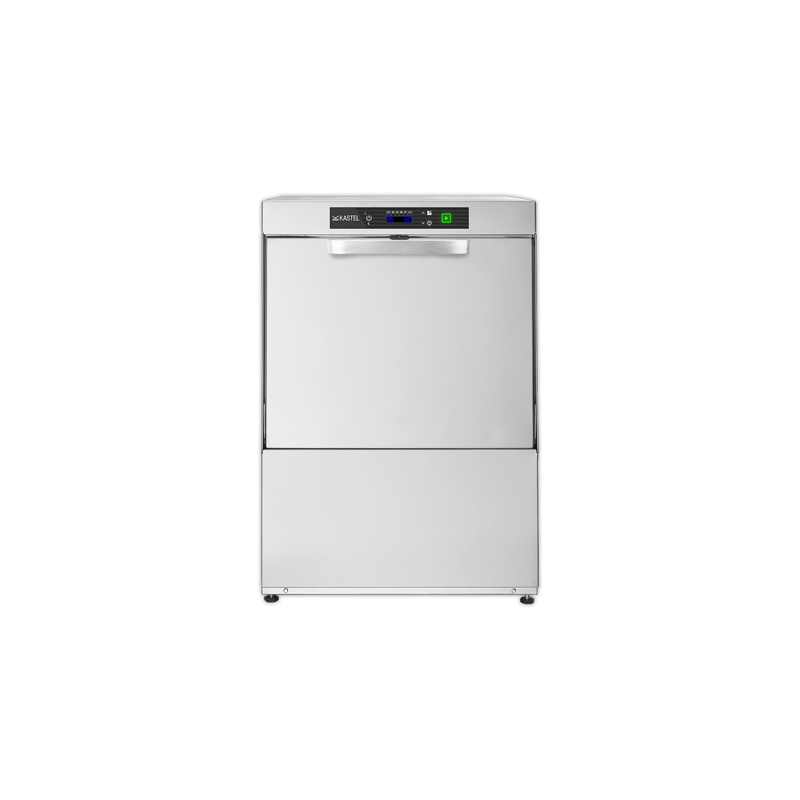

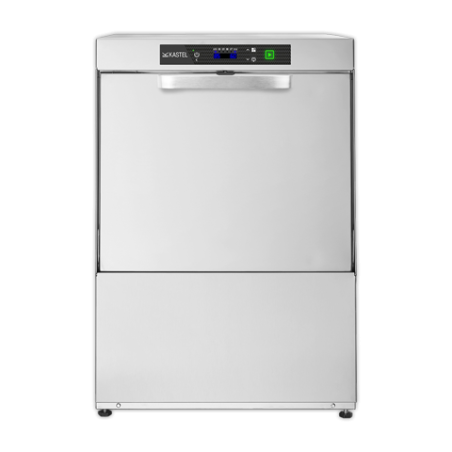

Lavavajillas In. KASTEL KSFK50ESIMPADDDP

TECHNICAL DATA SHEET
Mod. FK 50 ESI M PA






STANDARD EQUIPMENT
• 1 plate rack 50x50 cm
• 1 glass rack 50x50 cm
• 1 cutlery holder
• 1 inlet hose (length 2 mt)
• 1 drain hose (length 2,5 mt)

OPTIONS
• Built-in automatic water softener (S)
• Electric detergent dispenser (DD)
GENERAL FEATURES • Drain pump (DP)
• Rack dimensions: 50x50 cm • KIT surface filters
• Net weight: 53 Kg • KIT high feet (95÷140mm)
• Wash cycles / racks per hour: 90”-120”-180”-9’/ • KIT booster pump
40-30-20-7 • 60 Hz version
• Composite material wash/rinse arms easily removable
• Wash pump: 550 W WATER TREATMENT ACCESSORIES
• Boiler capacity: 5 lt • Automatic water softener
• Tank capacity: 20 lt ACCESSORIES
• Boiler heating element: 2,7 kW • Stainless steel stand H 550 mm
• Tank heating element: 2,4 kW • Special racks
• Water quantity per cycle: 2 lt
• Useful washing height: 340 mm WATER SUPPLY CONNECTION
• Electronic management with 6-character LED • Water supply hardness:
display showing boiler and tank temperatures, Water hardness between 0 and 14°f (0 ÷ 8°d)
multicoloured start button and self-diagnostic Above 14°f (8°d) suggested water softener
system • Water supply dynamic pressure:
• Electric rinse aid dispenser Standard between 2 and 5 BAR
• Backflow prevention device With built-in water softener between 2 and 4 BAR
• Thermostop function (hot rinse) • Water supply temperature:
• Green function for energy saving Standard between 10 and 60°C
• Automatic end of day self-cleaning cycle With built-in water softener between 10 and 25°C

FILTRATION MAIN POWER SUPPLY
• Plastic wash pump filter, easily removable • The voltage of main power supply must be
compatible with the rated voltage
• The machine must be connected to a
BODY suitable earth (ground) system
• AISI 304 stainless steel structure • Connect the machine power socket to the
• Partial double skinned body multi- pole wall switch provided
• Preformed wash tank with rounded corners
To avoid grime build-up TECHNICAL SPECIFICATIONS
• Preformed rack guides • Electrical supply: 220-240V~ 50 Hz
• Double walled door • Total power: 3,25 kW
• 30/10 door reinforcement brackets for extra strength • Absorbed current: 14 A
• Boiler in stainless-steel AISI 304 • Power cord supply size: 3 x 2,5 mm2
ED.01/2025




FK 50 ESI M PA



ED.01/2025
