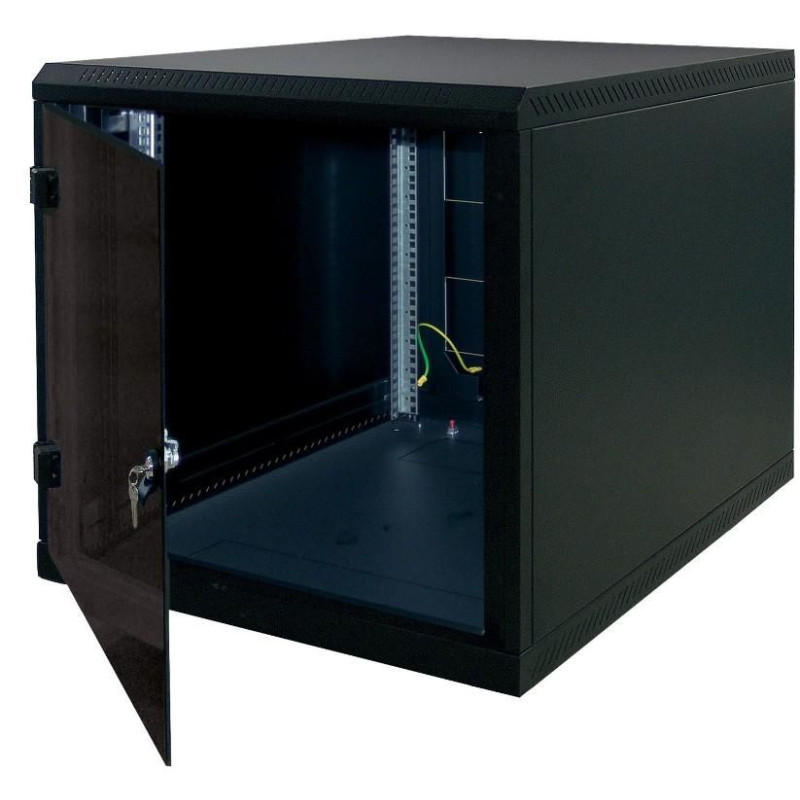

Triton Rack Cabinet Wall Mounted - Ref. RBA-12-AS4-BAX-A1

One-sectioned welded wall cabinet.

IP30, capacity 30 kg.

High quality workmanship and up-to-date technology ensure a perfect look of the cabinet.
The cabinet has fully glass door in standard. It can be steel or perforated if required.
The hinge system allows the door to open almost 180°. The door can be easily removed and re-mounted to change the direction of opening.

DOOR LOCK

It enables an easy and quick access into the cabinet.

ADJUSTABLE VERTICAL RAILS

One pair of vertical 19“ rails is freely adjustable in any depth of the cabinet. This simplifies mounting of devices and organisation of connecting cables.

BREAKOUT-TYPE BLANKING PANELS

Cable openings covered with breakout-type blanking panels are ready in the top, bottom and rear part of the cabinet. Use a plastic frame and a blanking panel with a brush, that are parts of the cabinet supply, to seal the cabinet opening against dust penetration.

VENTILATION

The RBA type A6 has 6 break-out blanking panels for the installation of ventilation units RAx-CH-X2x-X1 or fans RAX-CH-X07-X9 (up to 3 in top and 3 in bottom part of the cabinet). The RBA cabinet provides with a possibility to install an equipment, which has never been cooled enough before. Such equipment could be only installed into free standing cabinets before.

Cerradura con llave	Yes
Certificación	IP30
Color producto	Black
Material	Glass/Steel
Máxima capacidad de peso	30 kg
Tipo	Wall mounted rack
Garantía	1 año
