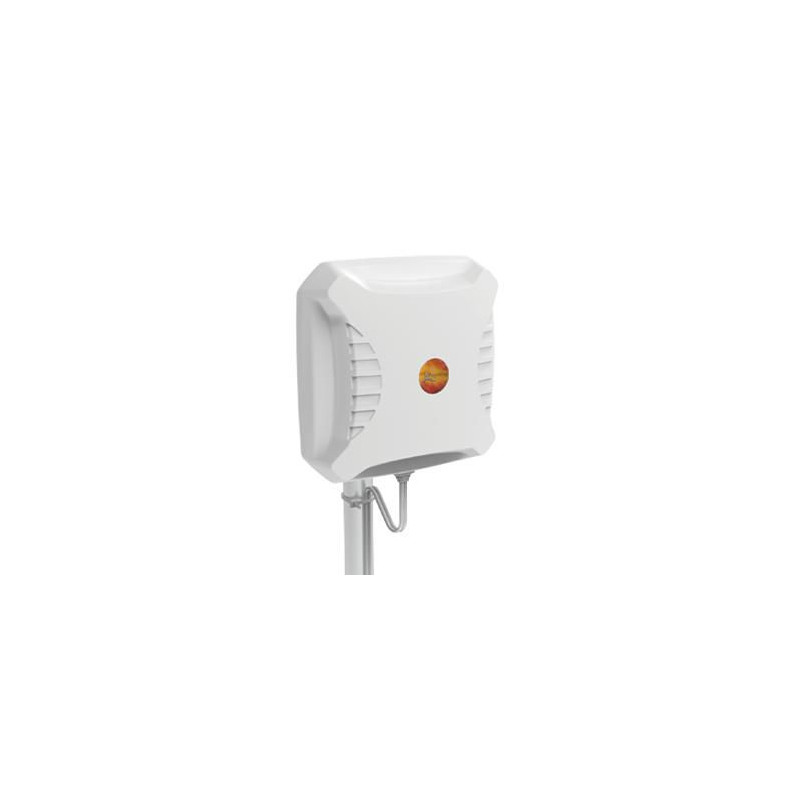

network antenna Directional - Ref. A-XPOL-0002-V3-03
281,64 €
232,76 € sin IVA
Impuestos incluidos
network antenna Directional. Producto Poynting con envío en 24/72h y garantía oficial en APLIUM. Ref. E-A-XPOL-0002-V3-03.
Pago 100% seguro
Tarjeta (RedSys) y transferencia bancaria
Envío en 24/72 h
Envío 9,95 € · GRATIS a partir de 299 €
Devoluciones en 14 días
Devolución fácil y sin complicaciones
Factura de empresa
IVA desglosado y factura oficial en cada compra
The XPOL-2-5G is Poynting’s third generation “V3” of this very popular Cross Polarised (XPOL), cellular band, 2×2 MIMO antenna. The antenna enclosure effectively looks the same as the second generation “V2” but has been completely redesigned on the inside. We have used advanced metamaterial technology, making use of Artificial Magnetic Conductors (AMC) and new registered/patent pending radiator configuration, which is proving to yield exceptional improvements in bandwidth and gain. Radiation patterns of this antenna are exceptionally well controlled, further adding to the performance of the antenna.
The XPOL-2-5G antenna includes the newer 3400 – 3800 MHz bands, which were not previously covered by our V2 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 698 – 960MHz, 1700 – 2170MHz, 2300 – 2700MHz & 3400 – 3800MHz. In addition to the new bands, the gain in the 1700MHz and 2.7GHz is around 3dB higher than the “V2” over the same frequency bands! Our “V2” antenna already outperformed most competitors over these bands, so this substantial improvement in gain shows the benefits of the new advanced materials and novel radiator design.
So, if it was a car, we installed an entirely new technology engine producing twice the power under the bonnet – it may look the same, but just wait until you turn the ignition on!
The XPOL-2-5G antenna includes the newer 3400 – 3800 MHz bands, which were not previously covered by our V2 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 698 – 960MHz, 1700 – 2170MHz, 2300 – 2700MHz & 3400 – 3800MHz. In addition to the new bands, the gain in the 1700MHz and 2.7GHz is around 3dB higher than the “V2” over the same frequency bands! Our “V2” antenna already outperformed most competitors over these bands, so this substantial improvement in gain shows the benefits of the new advanced materials and novel radiator design.
So, if it was a car, we installed an entirely new technology engine producing twice the power under the bonnet – it may look the same, but just wait until you turn the ignition on!
| Certificados de conformidad | CE/RoHS |
| Conformidad sostenibilidad | Yes |
| Código de protección (IP) | IP65 |
| Color producto | White |
| Material de la carcasa | Acrylonitrile styrene acrylate (ASA) |
| Relación onda estacionaria voltaje (VSWR) | 1.5.1 |
| Soporte | Wall/Pole |
| Tipo de antena | Directional antenna |
| Tipo de conector de antena | SMA |
| Velocidad de viento supervivencia | 250 kmh |
| Humedad relativa de almacenamiento (H-H) | 5 - 95 % |
| Humedad relativa de funcionamiento (H-H) | 0 - 98 % |
| Temperatura de almacenamiento (T-T) | -40 - 80 °C |
| Temperatura de funcionamiento (T-T) | -40 - 80 °C |
| Kit de montaje | Yes |
| Impedancia | 50 Ω |
| Nivel de ganancia de antena (máx.) | 11 dBi |
| Garantía | 1 año |
MP-44150
Bajo pedido · sin existencias
Ficha técnica
- Material de la carcasa
- Acrylonitrile styrene acrylate (ASA)
- Tipo de conector de antena
- SMA
- Certificados de conformidad
- CE/RoHS
- Kit de montaje
- Yes
- Tipo de antena
- Directional antenna
- Garantía
- 1 año
- Color producto
- White
- Humedad relativa de almacenamiento (H-H)
- 5 - 95 %
- Humedad relativa de funcionamiento (H-H)
- 0 - 98 %
- Temperatura de almacenamiento (T-T)
- -40 - 80 °C
- Temperatura de funcionamiento (T-T)
- -40 - 80 °C
- Conformidad sostenibilidad
- Yes
- Impedancia
- 50 Ω
- Código de protección (IP)
- IP65
- Soporte
- Wall/Pole
- Nivel de ganancia de antena (máx.)
- 11 dBi
- Relación onda estacionaria voltaje (VSWR)
- 1.5.1
- Velocidad de viento supervivencia
- 250 kmh
Referencias específicas
- ean13
- 6009710920121
- MPN
- A-XPOL-0002-V3-03
