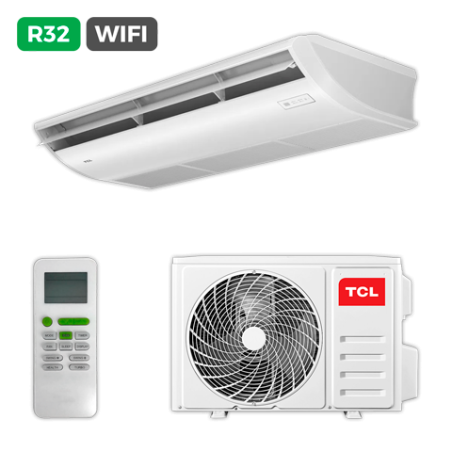

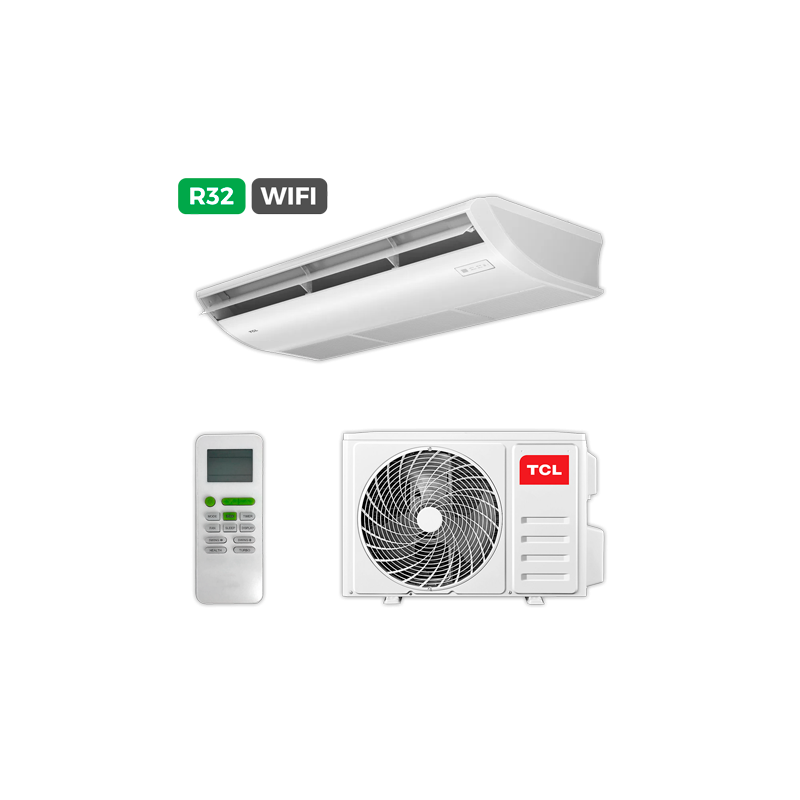

Aire TCL SUELO/TECHO UNITARY M48L31

AC Smart Air, Soft Care
MONO SPLIT AIR CONDITIONER
Ceiling&Floor L3 series
M48L31

Cooling
Heating
Hotel Mode More Remote Control Setting Wire Control*/Remote IOT WIFI CONTROL
Door Card removed, Window Switch o Auto restart, Control Control the temperature
left open, Fire Alarm : setting Cooling only/Heating Depending on your needs, you in your home anytime and
Automatic switch o. only, maximum/minimum
 can control your device with anywhere via the TCL Home
BMS temperature, filter Replacement a wired controller* or with the App. or via simple voice
(Building Management System) Reminder. remote control. commands**.
Control up to 30 units
 Energy saving and good

through a single computer. indoor air quality.
Inverter Technology 104° wide range of air flow Heating and Cooling
Inverter compressor with advanced With a unique oscillating TCL air to air heat pumps are reversible.
technology: 30% improvement in energy design, the air direction can Whether to cool or heat your home,
eciency, rapid cooling or heating (90 be adjusted at will, the enjoy an ecient and economical
seconds for cold or hot air output at full airflow is evenly distributed system all year round.
load), precise temperature control. throughout the room
*Wired Controller not included
*Connected with smart TV, smartphone or Alexa soundbar via TCL HOME or Google Assistant.
AC Smart Air, Soft Care
MONO SPLIT AIR CONDITIONER
Ceiling&Floor L3 series
M48L31

Functions
Wired Control/ Hotel Mode IOT Wifi 104° Wide LED Digital Dual Drainage Flexible Ultra-Thin Seven Gear Heating & Cooling Under Heating Under Inverter
Remote Control Control Range Display Installation Design Wind Speed Cooling Extreme Extreme Technology
of Air Flow Condition Condition
Technical Specifications
Model Name M48L31
Ean Code 8720568105598
Indoor unit model name MN48L31
Ean code 8720568105871
Outdoor unit model name MT4831
Ean code 8720568105987
Main Specifications
Declared cooling capacity (mini-maxi) btu/h 48000(12000~52000)
Declared cooling capacity (mini-maxi) W 14070(3520~15240)
Pdesignc W
Cooling Indoor cooling operating current A 1.0(0.6~1.4)
Indoor cooling power consumption W 310(80~380)
Outdoor cooling power consumption (mini-maxi) A 7.4(1.5~10.6)
Outdoor cooling operating current W 4650(800~5820)
Declared heating capacity (mini-maxi) btu/h 55000(14000~58000)
Declared heating capacity (mini-maxi) W 16120(4100~17000)
Pdesignh average W
heating operating current A 1.0(0.6~1.4)
Heating Indoor
Outdoor heating operating current (mini-maxi) A 8.4(1.7~9.8)
Indoor heating power consumption W 310(80~380)
Outdoor heating power consumption (mini-maxi) W 5200(920~5460)
Performance
Cooling EER declared NA
SEER declared NA
Heating SCOP average declared 4,0
COP declared NA
Moisture removal L/h 4,80
Indoor sound power (s/h/m/l/mute) dB (A) 65/64/61/58/55
Outdoor sound power dB (A) 72
Indoor sound pressure (s/h/m/l/mute) dB (A) 55/54/51/48/45
Outdoor sound pressure dB (A) 62
Energy Class
Cooling Energy class A++
Heating Energy class (average) A+
Outdoor Operating Temperature Range
Cooling mode °C 15 / 50°C
Heating mode °C 15 / -24°
Logistic Data
Product size (w x h x d) mm 1635x675x235
Indoor Unit Product weight kg 38
Packaging size (w x h x d) mm 1710x748x305
Packaging weight kg 43
Product size (w x h x d) mm 1010×858×436
Outdoor Unit Product weight kg 74
Packaging size (w x h x d) mm 1135x970x530
Packaging weight kg 86
Electrical Connection
Power supply Indoor 220-240V~/50Hz/1p - Outdoor 380~415V~/50Hz/3p
Connecting wiring ( core x size) 3×1mm
Refrigeration Fluid And Connection
Refrigerant type R32
Charge 2,10kg
Gwp 675
Co2 equivalent 1,418 tonnes
Max, dierence in level m NA
Gas connecting pipe Inches 5/8”
Liquid connecting pipe (inches) Inches 3/8”
