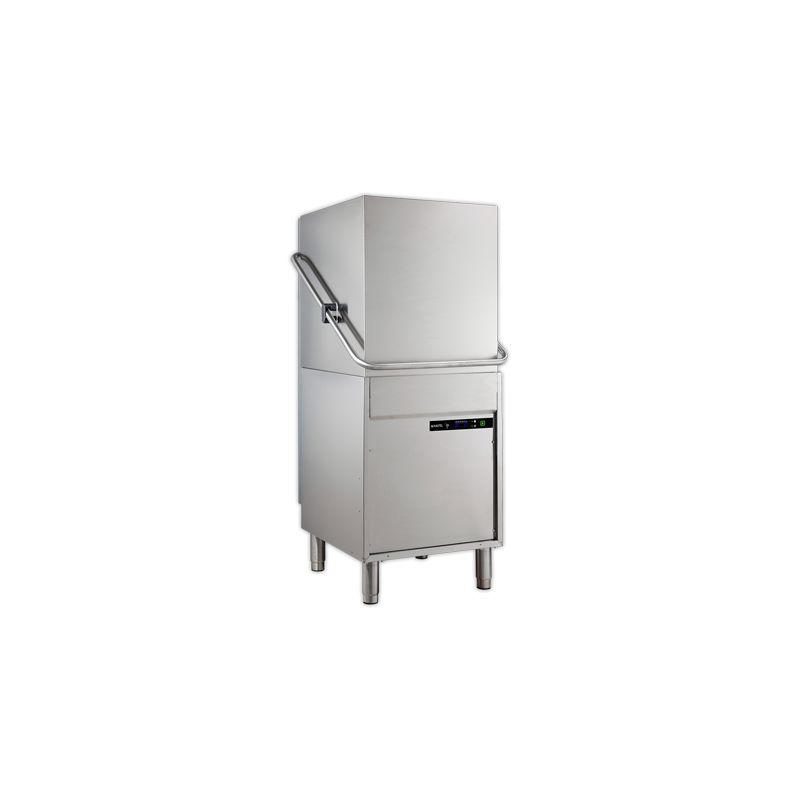

Lavavajillas Indust. KASTEL KSHK720ESIPA

TECHNICAL DATA SHEET

Mod. HK 720ESI



STANDARD EQUIPMENT
• 1 plate rack 50x50 cm

• 1 glass rack 50x50 cm
• 1 cutlery holder
• 1 inlet hose (length 2 mt)
• 1 drain hose (length 2,5 mt)

OPTIONS

• Electric detergent dispenser (DD)
• Drain pump (DP)
• KIT booster pump
• KIT remote control
• 60 Hz version


GENERAL FEATURES WATER TREATMENT ACCESSORIES
• Rack dimensions: 50x50 cm • Automatic water softener
• Net weight: 82 Kg ACCESSORIES
• Wash cycles / racks per hour: 60”-120”-180”-9’ / • Entry / exit tables in stainless-steel
60-30-20-7 • Pre-wash tables in stainless-steel
• Automatic cycle start upon door closure • Special racks
• Composite material wash/rinse arms easily removable
• Wash pump: 550 W
• Boiler capacity: 5 lt
• Tank capacity: 20 lt
• Boiler heating element: 6 kW
• Tank heating element: 2,4 kW
• Water quantity per cycle: 2 lt WATER SUPPLY CONNECTION
• Useful washing height: 425 mm • Water supply hardness:
• Electronic management with 6-character LED Water hardness between 0 and 14°f (0 ÷ 8°d)
display showing boiler and tank temperatures, Above 14°f (8°d) suggested water softener
multicoloured start button and self-diagnostic system • Water supply dynamic pressure:
• Electric rinse aid dispenser Standard between 2 and 5 BAR
• HD version (8,95 kW in 380-415V 3N~) • Water supply temperature:
• Backflow prevention device Standard between 10 and 60°C
• Thermostop function (hot rinse)
• Green function for energy saving MAIN POWER SUPPLY
• Automatic end of day self-cleaning cycle • The voltage of main power supply must be
compatible with the rated voltage
WATER FILTRATION • The machine must be connected to a
• Pre-filtering of the tank water by means of suitable earth (ground) system
composite material filter • Connect the machine power socket to the
• Plastic wash pump filter, easily removable multi- pole wall switch provided

BODY
• AISI 304 stainless-steel structure TECHNICAL SPECIFICATIONS
• Single skinned hood • Electrical supply: 380-415V 3N / 220-240V3 /
• Wash tank with rounded corners 220-240V~ 50 Hz (MULTIPOWER)
to avoid grime build-up • Total power: 8,95 kW
• Hood opening system with springs • Absorbed current: 13 A / 23 A / 29 A
2 2
• Boiler in stainless-steel AISI 304 • Power cord supply size: 5 x 2,5 mm / 3 x 4 mm

ED.01/2025




HK 720 ESI



ED.01/2025
