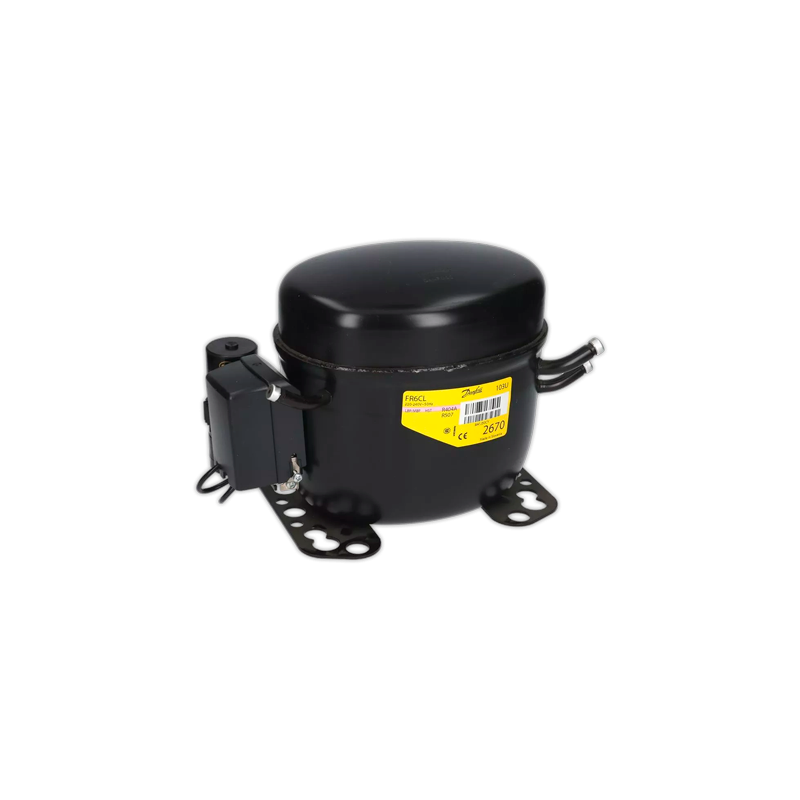

Compresor SECOP FR6CL R-404A 1/5 C/V

FR6CL Compressors
LBP/MBP Compressor
R404A/R507
220-240V 50Hz
Data Sheet (Replaces CF.53.A1.02)
General
Compressor FR6CL FR6CL 103U
Code number 103U2670 Application R404A
R507
Application Lilac stripe
Approvals
Application LBP/MBP Barcode on 2670
white background DANFOSS COMPRESSORS
Evaporating temperature range °C -45 to -5 Yellow background 8295
Voltage range V/Hz 198 - 254 /50
Motor type CSIR
Max. ambient temperature °C 38 S = Static cooling normally sufficient
Comp. cooling at ambient temp. 32°C F O = Oil cooling
2 F = Fan cooling 1.5 m/s
38°C F 1 (compressor compartment temperature
2 equal to ambient temperature)
F2 = Fan cooling 3.0 m/s necessary
Design
3
Displacement cm 6.23
3
Oil quantity cm 450
Maximum refrigerant charge g 850
3
Free gas vol. in compressor cm 1350
Weight without electrical equipment kg 10.5
ø16 204 ø19
178
Motor
Motor size watt 215
LRA (rated after 4 sec. UL984) HST A 8.2 6 5
101.7060. 35 127150
Cut-in current HST A 8.2
Resistance, main and start winding (25°C) Ω 8.9/12.0
Approvals EN 60335-2-34 ø9.7 127
165
170
Dimensions D 186 C
200
Height mm A 196 E
B 191 30°
Suction connector location/I.D. mm C 8.2 ±0.09 30°
Process connector location/I.D. mm D 6.2 ±0.09 A B 25°
Discharge connector location/I.D. mm E 6.2 ±0.09 127 102130
Compressors on a pallet pcs. 80
243 8253
156 °0 24°
55 4 40° 32 55
122.5 124.5
127.5
September 2002 CF.53.A2.02 1
Capacity (EN 12900/CECOMAF) watt
C5omp.\°C -04 -54 -03 -53 -32 -023. -52 -01 -51 -
F7R6CL 78150 194 138 234 276 330 338 487 57
c
Capacity (ASHRAE) watt
C5omp.\°C -04 -54 -03 -53 -32 -023. -52 -01 -51 -
F0R6CL 95182 106 232 278 380 375 434 565 67
b
Power consumption watt 8219
C5omp.\°C -04 -54 -03 -53 -32 -023. -52 -01 -51 - a2
F6R6CL 122 105 108 221 234 265 237 331 355 39
d
Current consumption A
C5omp.\°C -04 -54 -03 -53 -32 -023. -52 -01 -51 -
F3R6CL 18.1 16.1 15.2 16.3 11.4 10.5 15.6 11.7 19.9 2.0 c
10 11
COP (EN 12900/CECOMAF) W/W
C5omp.\°C -04 -54 -03 -53 -32 -023. -52 -01 -51 - 12 13
F1R6CL 01.6 00.7 00.8 00.9 14.0 11.0 12.1 14.2 17.3 1.4 14
COP (ASHRAE) W/W
C5omp.\°C -04 -54 -03 -53 -32 -023. -52 -01 -51 -
Main winding Winding protector Start winding
F1R6CL 02.7 04.8 05.9 17.0 11.1 19.2 13.2 17.4 11.5 1.7
Test conditions EN 12900/CECOMAF ASHRAE
Condensing temperature 45°C 45°C
Ambient and suction gas temp. 32°C 32°C
Liquid temperature 45°C 32°C
Fan cooling F2, 220V 50Hz
Accessories
D.evices FLig FR6C
S2tarting relay a5117U601
Cbover 103N2010
Starting capacitor 80 µFc117U5015
Cdord relief 103N1010
Mounting accessories
Bolt joint for one compressor 118-1917
Bolt joint in quantities 118-1918
Snap-on in quantities 118-1919
Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice.This also applies to
products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed.
All trademarks in this material are property of the respective companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.
2 CF.53.A2.02 September 2002
