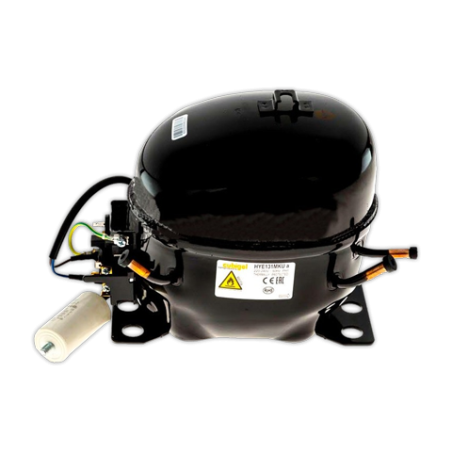

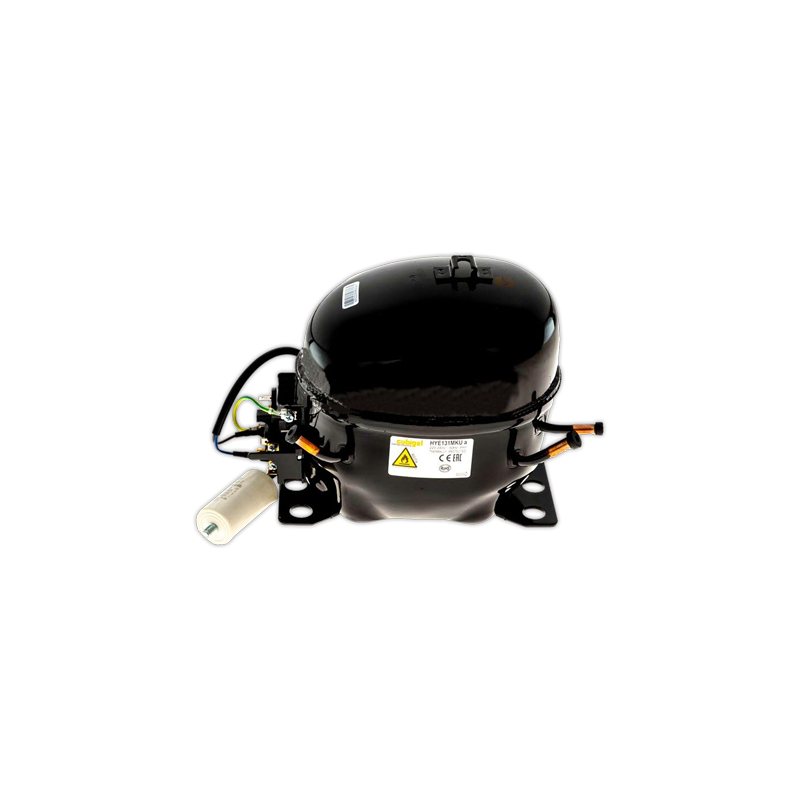

Compresor CUBIGE HYE131MKU R-600 1/4 B/S

HYE131MKUa COMPRESSOR TECHNICAL SPECIFICATION
1．Compressor Type
Compressor model HPY16AA
Rated voltage/frequency 220-240V～50Hz
Refrigerant R600a
Application Low back pressureÿLBPĀ
Cooling method Static Cooling
Control device Capillary tube
Motor type RSCR (PTC)
Capacitor 5μF
2．Performance Data (220V～50Hz)
3 Capacity(W) Inp.Pow.(W) Rated Current(A) COP(W/W)
Displ.(cm ) g95% f115% f110% g95%
13.1 235 144.2 0.75 1.63
Testing condition:

Test conditions LBP
ASHRAE
Evaporating Temp. -23.3℃
Ambient Temp. 32.2℃
Condensing Temp. 54.4℃
Suction Temp. 32.2℃
Subcooling Temp. 32.2℃
3．Running Condition
Ambient temp. 10～43℃
Evaporating temp. -35～-15℃
Voltage range 187～254V
Max. condensing temp. 65℃
Max. winding temp. 130℃
Max. shell temp. 95℃
Max. discharge temp. 110℃
HYE131MKUa COMPRESSOR TECHNICAL SPECIFICATION
4．Compressor Mechanical Information
Oil type Mineral
Oil charged 180±10ml
0.1
Diameter of suction tube (I.D.) Φ6.1 mm
0
0.1
Diameter of discharge tube(I.D.) Φ4.9 mm
0
0.1
Diameter of process tube (I.D.) Φ6.1 mm
0
Material of suction tube, process tube and
discharge tube copper tube
Compressor noise ≤42dB(A)
Vibration ≤0.8m/s2
5．Compressor Shapeÿconnections on suction and process can not
be invertedĀ
HYE131MKUa COMPRESSOR TECHNICAL SPECIFICATION
6．Wiring Diagram
RSCR:
