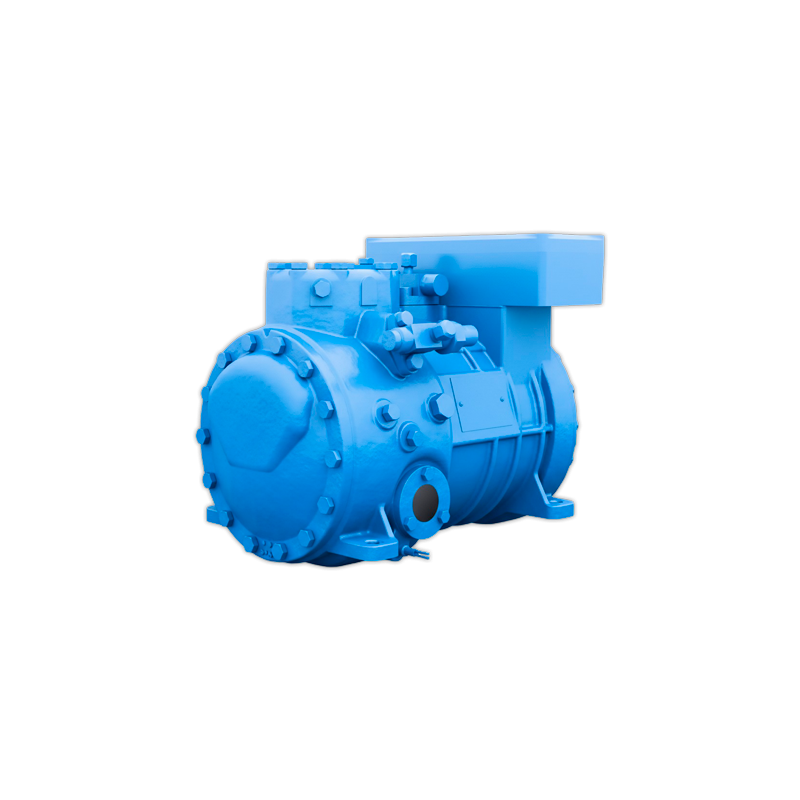

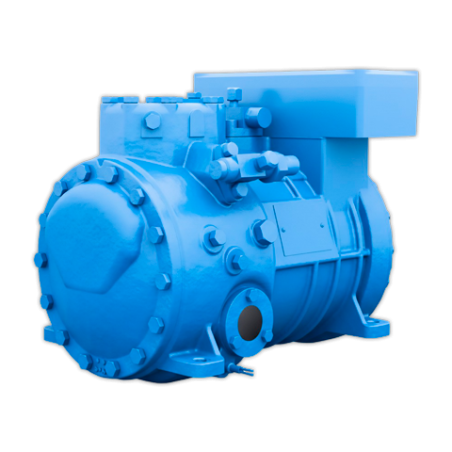

Compresor FRASCOLD Semi-Herm. A0,7-6 Y

A07-6Y
Data sheets
For standard refrigerants > Standard single-phase series
Technical data:
Cylinders # 2
Displacement @ 50 Hz m3/h [50Hz] 5.5
Displacement @ 60 Hz m3/h [60Hz] 6.6

Motor version[1] 2
Nominal Motor power HP 0.75
Nominal Motor power kW 0.5
Motor voltage at 50 Hz[2] V/ph/Hz 220-240V/1/50Hz DOL
Motor voltage at 60 Hz[2] V/ph/Hz 265-290V/1/60Hz DOL

Bridges for DOL start Standard
MRA, max operating current at 230V/50Hz and 280V/60Hz A 8
LRA, max starting current at 230V/50Hz and 280V/60Hz, DOL motor A 35.9
Max power consumption kW 1.56
Frequency min Hz NO
Frequency max[3] Hz NO

Control and protection device INT69®

Electric terminal box class protection IP56
Maximum pressure HP bar 30
Maximum pressure LP bar 20.5

Oil type[4] POE32
Oil charge (3/4 of sight glass) l 1

Lubrication type Centrifugal
Suction valve (SV) inch ~
Discharge valve (DV) inch ½
Net weight kg 36
Max Length mm 317
Max Width mm 237
Max Height mm 275
Rubber mounts diameter mm 30
Rubber mounts height mm 30
Rubber mounts shore sh 45
Sound power level (-10/45, R404A)[5] dB(A) 63.5
Sound pressure level @ 1m (-10/45, R404A)[5] dB(A) 55.5

Compressor body material Cast Iron
Motor version: 1 = high and mid temp. all refrigerants; 2 = low and mid temp. all refrigerants; 3 = ECOinside, low temp. R134a,
[1]
R1234ze, R1234yf only
[2] Other motor voltage available on request
[3] Maximum frequency depends on the working conditions: use the FSS.3 (Frascold selection software)
[4] For alternative lubricants refer to bulletin FTEC022
Sound pressure in free field, hemispherical model at 1 meter distance, 50Hz; PWL and SPL in different conditions are available on
[5]
FRASCOLD SPA via Barbara Melzi 103/105, IT 20027 Rescaldina MI - +39-0331-742201 email frascold@frascold.it web www.frascold.it
A07-6Y
Data sheets
For standard refrigerants > Standard single-phase series
Accessories:
Oil heater (230V-50W) T00CH13-RIC
Electronic oil level switch (230V) T00WK252
Electronic oil level regulator - INT280 Diagnose 230V AC T00EC1900
Head cooling fan - 230V/1/50-60Hz SZ-FM1
Terminal plate cover T00EC09C
Kit adapters for oil equalization line - 1" ROT 5/8" ODS T00SK170200
Kit adapters for oil equalization line - 1"1/4 ROT 1"1/8 ODS T00SK170300
FRASCOLD SPA via Barbara Melzi 103/105, IT 20027 Rescaldina MI - +39-0331-742201 email frascold@frascold.it web www.frascold.it
A07-6Y
Data sheets
For standard refrigerants > Standard single-phase series

Dimensional drawing: 3 Oil charge plug (3) 1/4" GAS

SV Suction valve (SV) mm 15.8 4 Oil level sight glass (4) -

DV Discharge valve (DV) mm 12.7 5 Crankcase heater (5) -

SV Suction valve (SV) inch ~ 6 Oil drain plug (6) M8 x 22

DV Discharge valve (DV) inch ½ 12 Oil return plug (12) 1/8" NPT

A Length (A) mm 317 DV Discharge valve (DV) -

B Width (B) mm 237 SV Suction valve (SV) -

C Height (C) mm 275 NP Name Plate (NP) -
D Base mounting (D) mm 234
E Base mounting (E) mm 194
F Suction valve (F) mm 150
G Suction valve (G) mm 209
L Discharge valve (L) mm 97
M Discharge valve (M) mm 167
N Discharge valve (N) mm 18

1 High pressure plug (1) 1/8" NPT

2 Low pressure plug (2) 1/8" NPT
FRASCOLD SPA via Barbara Melzi 103/105, IT 20027 Rescaldina MI - +39-0331-742201 email frascold@frascold.it web www.frascold.it
