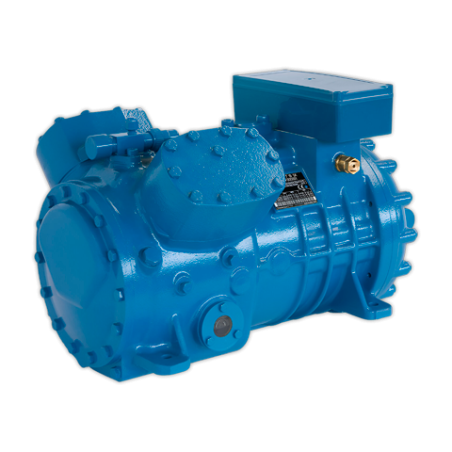

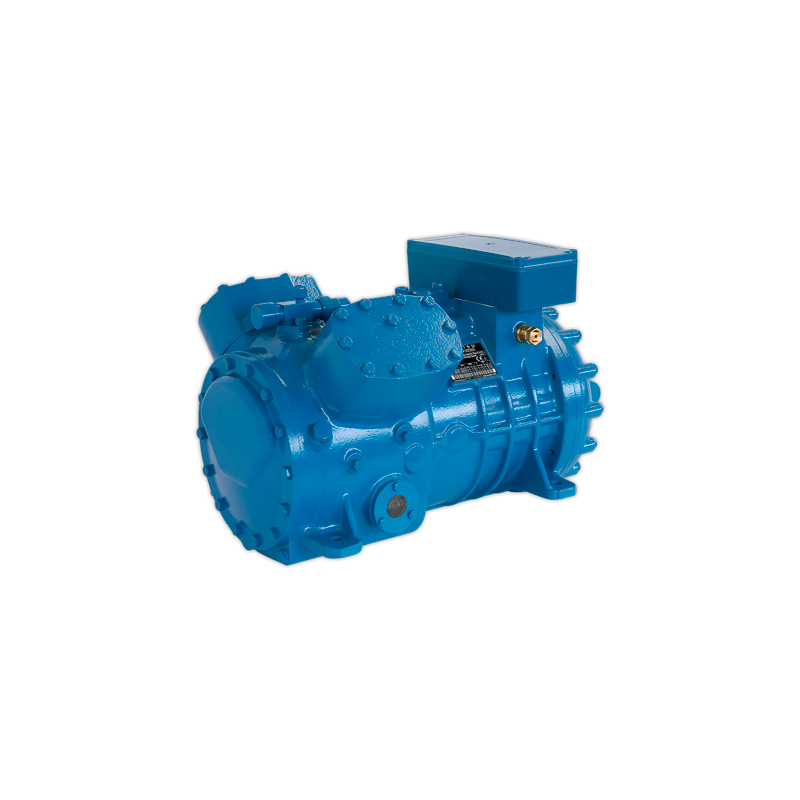

Compresor FRASCOLD Semi-Herm. Q-4-24.1 Y

Q4-24.1Y
Data sheets
For HFC/HFO/HCFC refrigerants > Standard and ECOinside series
Technical data:
Cylinders # 4
Displacement @ 50 Hz m3/h [50Hz] 23.9
Displacement @ 60 Hz m3/h [60Hz] 28.7

Motor version[1] 2

Nominal Motor power (HP) 4

Nominal Motor power (kW) 3
Motor voltage at 50 Hz[2] V/ph/Hz 220-240V - 380-420V/3/50Hz DOL
Motor voltage at 60 Hz[2] V/ph/Hz 265-290V - 440-480V/3/60Hz DOL
CC Head capacity control steps % 100-50
RSH Head capacity control steps % 100-75-50
MRA, maximum operating current at 400V/50Hz and
A 11.7
LRA, maximum starting current at 230V/50Hz and
A 92.6
LRA, max starting current at 400V/50Hz and 460V/60Hz,
A 53.2
Frequency min Hz 25
Frequency max[3] Hz 87

Electric terminal box class protection IP56
Maximum pressure HP bar 30
Maximum pressure LP bar 20.5

Oil type[4] POE32
Oil charge (3/4 of sight glass) l 1.6

Lubrication type Centrifugal
Suction valve (SV) inch 1 |
Discharge valve (DV) inch ¾
Net weight kg 79
Max Length mm 449
Max Width mm 286
Max Height mm 325
Rubber mounts diameter[2] mm 40
Rubber mounts height mm 40
Rubber mounts shore sh 45
Sound power level (-10/45, R404A)[5] dB(A) 70
Sound pressure level @ 1m (-10/45, R404A)[5] dB(A) 62

Compressor body material Cast Iron

Motor protection AMS

Control, diagnostics and protection device INT69® Diagnose
Oil level sight glass # 2

Control and protection device
Motor version: 1 = high and mid temperature, all refrigerants; 2 = low and mid temperature, all refrigerants; 3 = ECOinside, low
[1]
temperature, R134a and R1234ze only
[2] Others available on request
[3] Maximum frequency depends on the working condition: see FSS3 (Frascold selection software)
[4] Different kind of oil available on request
FRASCOLD SPA via Barbara Melzi 103/105, IT 20027 Rescaldina MI - ++39-0331-742201 email frascol@frascold.it web www.frascold.it
Q4-24.1Y
Data sheets
For HFC/HFO/HCFC refrigerants > Standard and ECOinside series
Accessories:
Water cooled head T00SK50020
Oil heater (230V-70W) T00CH1-RIC
Discharge temperature sensor T00EC50D
RSH capacity control head 230V AC T00SK220310
CC capacity control head 230V AC T00SK220150
US unloader start head 230V AC T00SK250150
Head cooling fan - 230V/1/50-60Hz SZ-FM9
Electronic oil level regulator T00EC1900
Kit adapters for oil equalization line - 1" ROT 5/8" ODS T00SK170200
Kit adapters for oil equalization line - 1"1/4 ROT 1"1/8 ODS T00SK170300
DP Modbus Gateway T00EC59
Connection cable Modbus Gateway - INT69 T00EC64
USB adapter cable T00EC57
FLI electronic liquid injection SZ-FLI/4
FRASCOLD SPA via Barbara Melzi 103/105, IT 20027 Rescaldina MI - ++39-0331-742201 email frascol@frascold.it web www.frascold.it
Q4-24.1Y
Data sheets
For HFC/HFO/HCFC refrigerants > Standard and ECOinside series

Dimensional drawing: 2 Low pressure plug 1/8" NPT

SV Suction valve mm 28.6 3 Oil charge plug 1/4" GAS

DV Discharge valve mm 19 4 Oil level sight glass -

SV Suction valve inch 1 | 5 Crankcase heater -

DV Discharge valve inch ¾ 6 Oil drain plug M8 x 22

A Length mm 449 7 Liquid injection valve plug 1/8" NPT

B Width mm 286 8 Liquid injection sensor plug 1/8" NPT

C Height mm 325 12 Oil return plug 1/8" NPT

D Base mounting mm 312 14 Max. discharge temperature sensor 1/8" NPT

E Base mounting mm 246 16 Crankcase pressure plug 1/8" NPT

F Suction valve mm 203 NP Name Plate -

G Suction valve mm 258 DV Discharge valve -

H Suction valve mm 53 SV Suction valve -
L Discharge valve mm 123
M Discharge valve mm 239
N Discharge valve mm 12

1 High pressure plug 1/8" NPT
